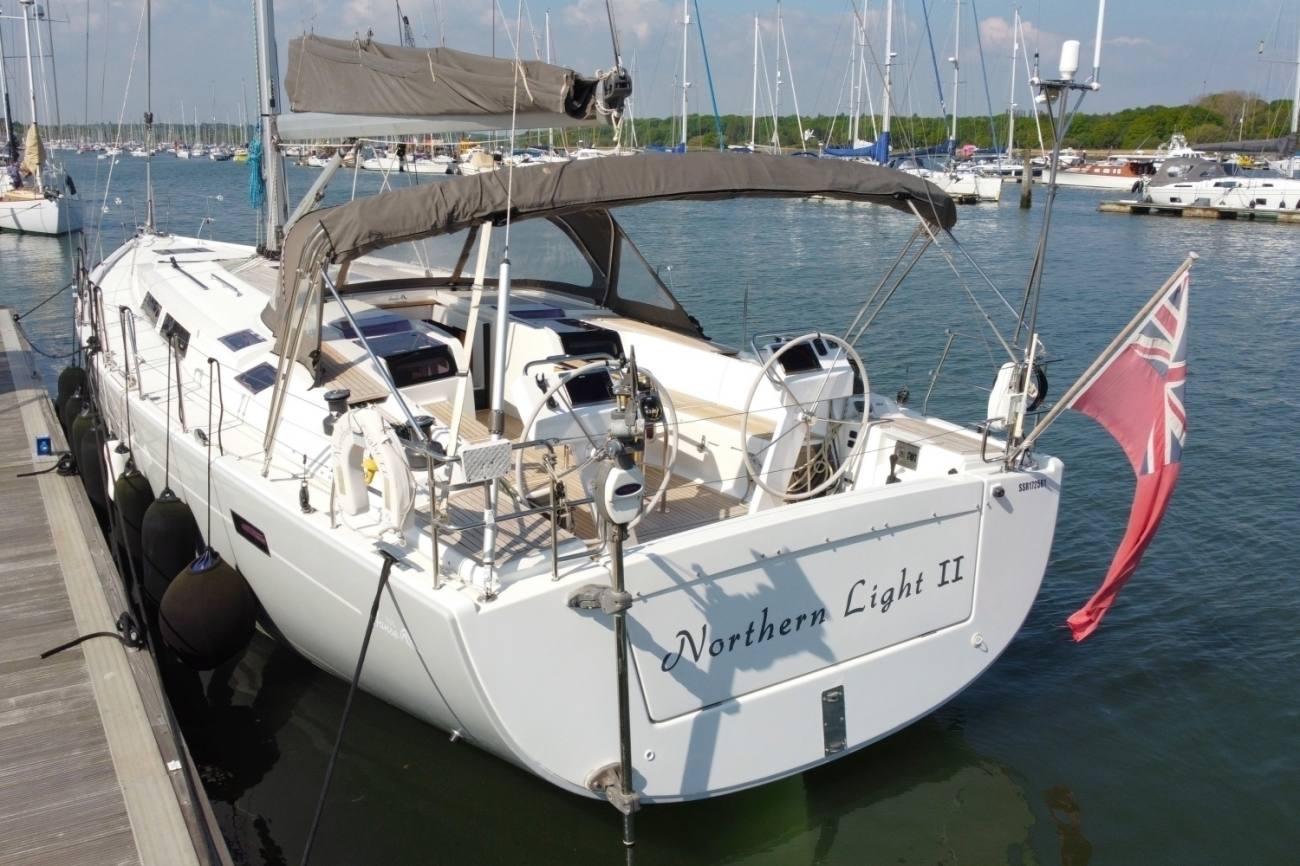

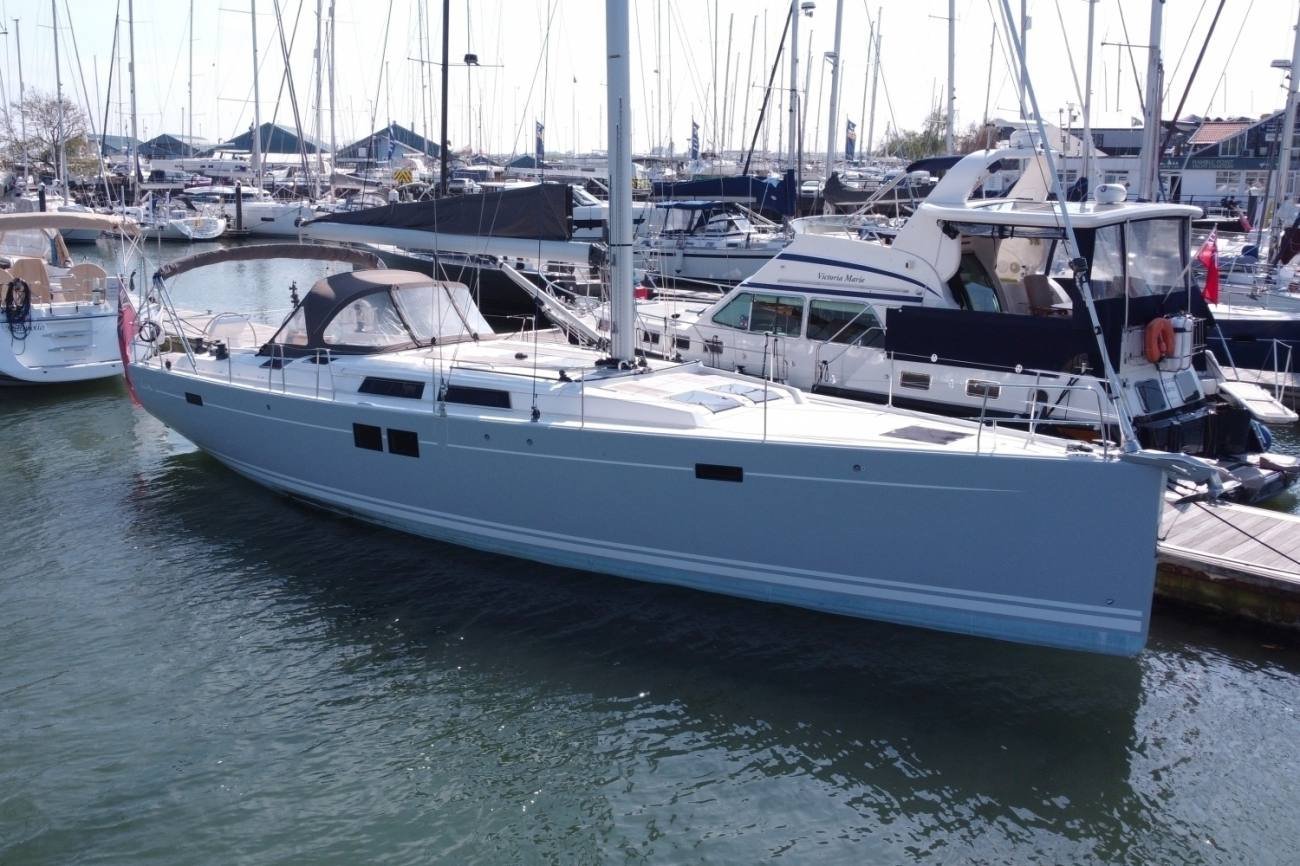

Hanse 505
Hanse 505 for sale
Boat Details

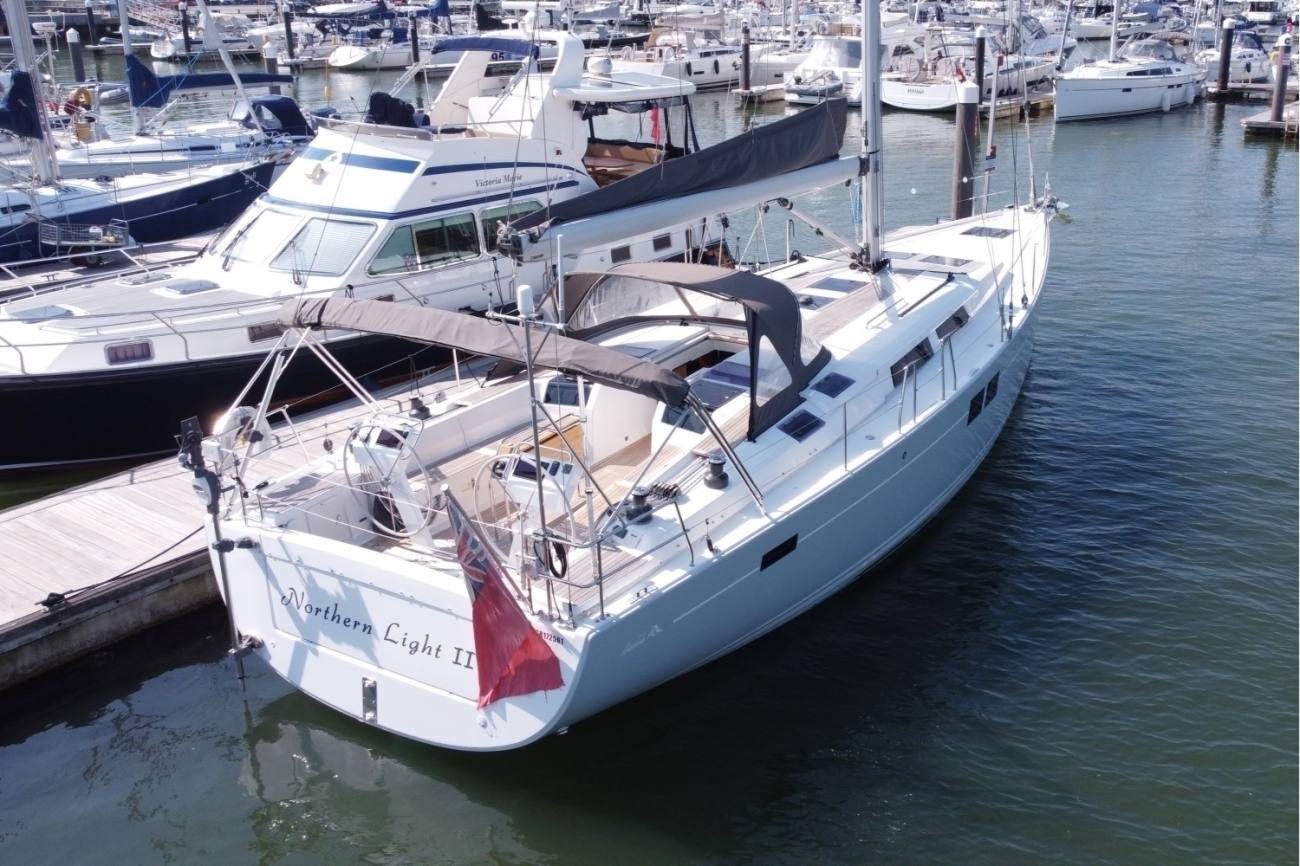

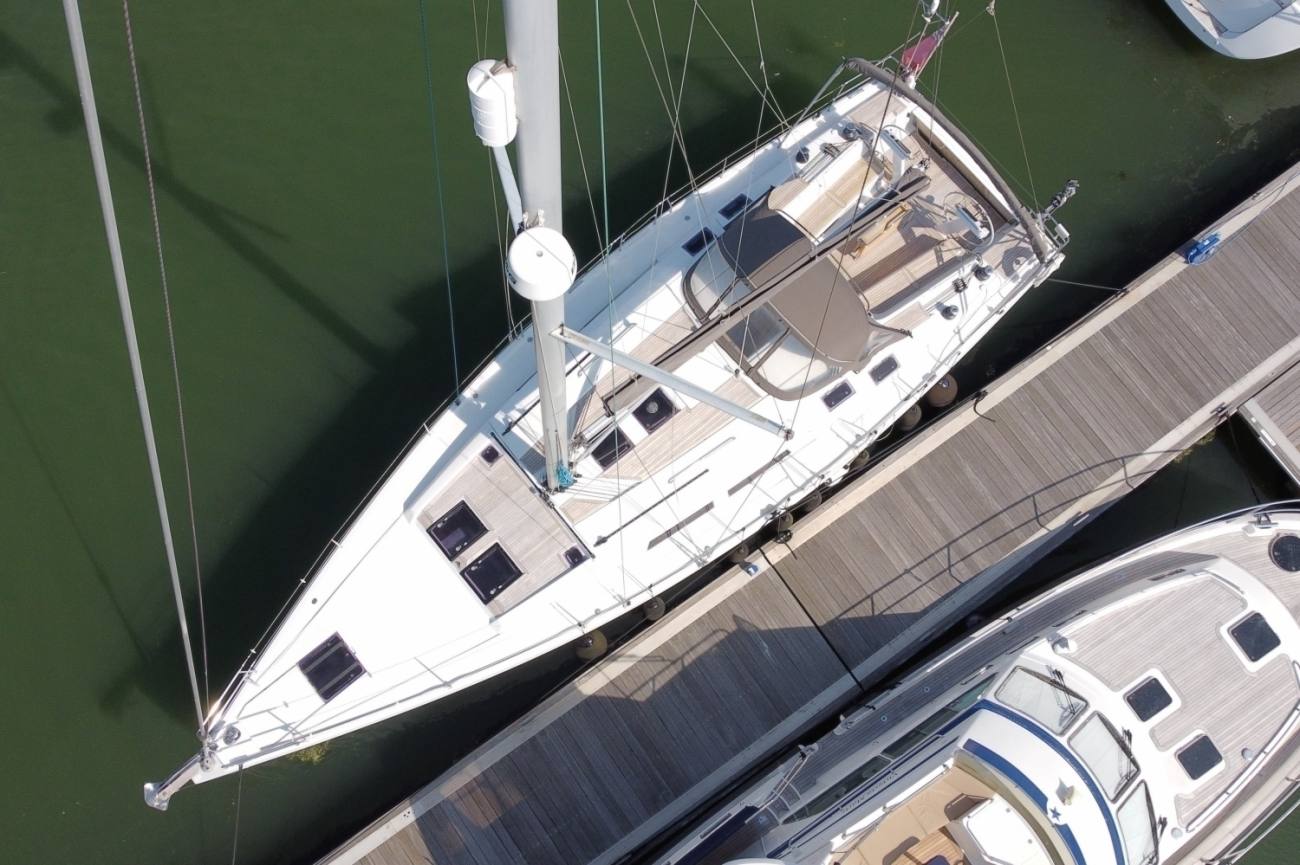

This exceptionally well presented Hanse 505 is for sale now, based in the UK. Fitted out for trans-Atlantic but just at home for coastal sailing, the comfort and sailing performance of this long legged, up to date cruising yacht. Easily managed by a short handed family crew or a full team.
The extras list is extremely impressive, Electric winches ensure easy short handed sailing, stack pack mainsail gives easy control and stowing without the complexity of in-mast reefing.
The interior is bright and airy whilst remaining functional and seaworthy.
The Hanse 505 stands out as being one of the great successes in the range of this successful German builder. This example, Northern Light II has benefitted from knowledgeable owners in the past & present, they have enjoyed her and maintained her to ensure that the next owner will be able to use her to the full extent of her original design brief.
360
Video
Dimensions
| LOA | 15.40 m |
| LWL | 13.54 m |
| Beam | 4.75 m |
| Draft | 2.38 m |
| Displacement | 14,400 kg |

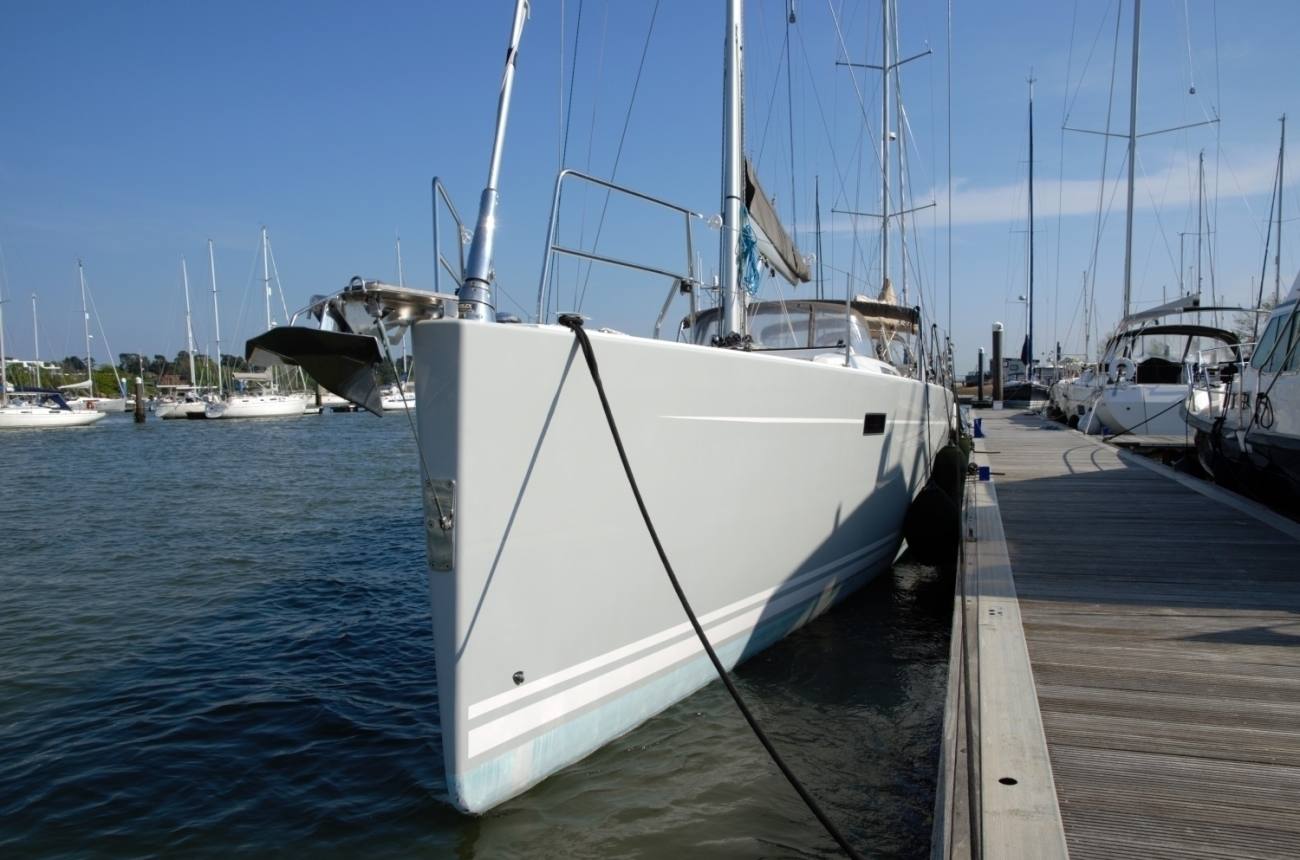

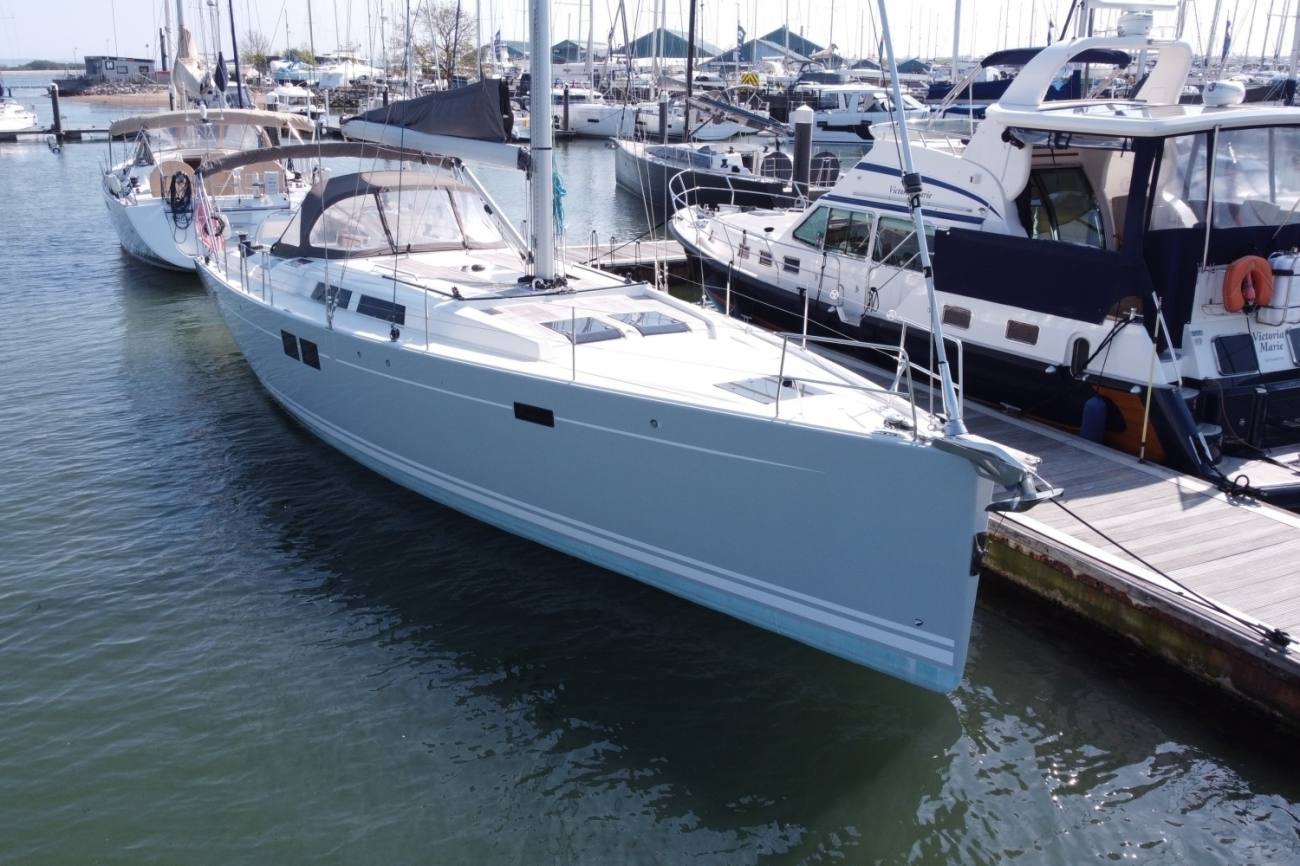

Hull, Deck & Keel
- GRP Hull in light grey Isophthalic gelcoat with white water lines.
- Topside Top coat refresh in Awl craft 2000 light grey.
- Laminate construction vinylester epoxy based resin for all outer laminates to increase osmosis protection.
- Balsa sandwich above the waterline for structural stiffness and insulation.
- Main bulkhead laminated to hull and deck.
- Inner structural matrix laminated into the hull for increased structural strength.
- Hull windows giving added light and ambiance for when relaxing below.

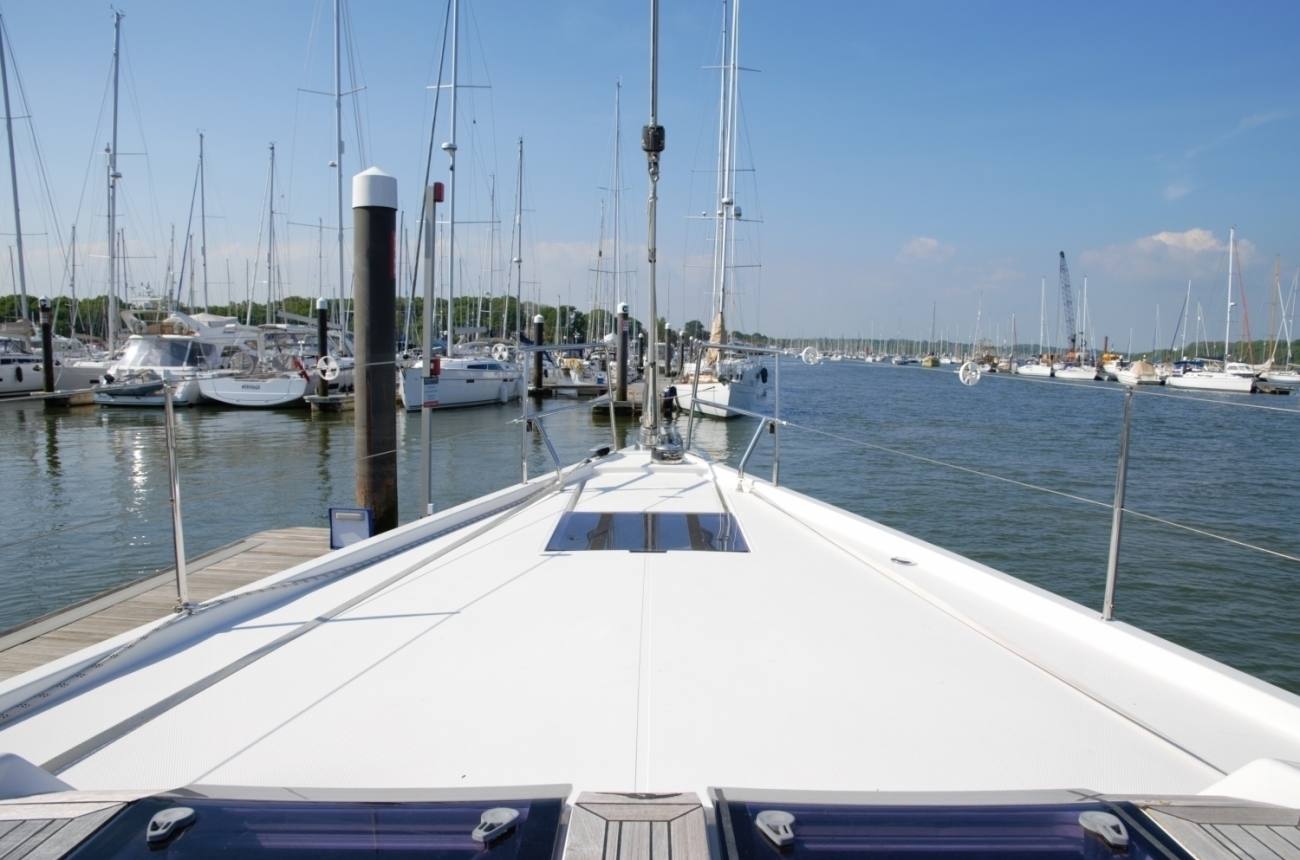

- White GRP moulded deck with moulded non slip decks.
- Balsa sandwich flat panels.
- Keel plates laid in a resin base compound to prevent movement and delamination.
- Cast iron T Keel
- Balanced Spade Rudder with Aluminium Rudder stock through balance needle bearings. New Seals March 2023.
Deck Equipment
- Stainless steel split pulpit
- Stainless steel split push-pit with flag staff socket.
- Tapered stanchions for twin guard rails.
- Mid deck guard rail gates.
- 6 Mooring cleats.

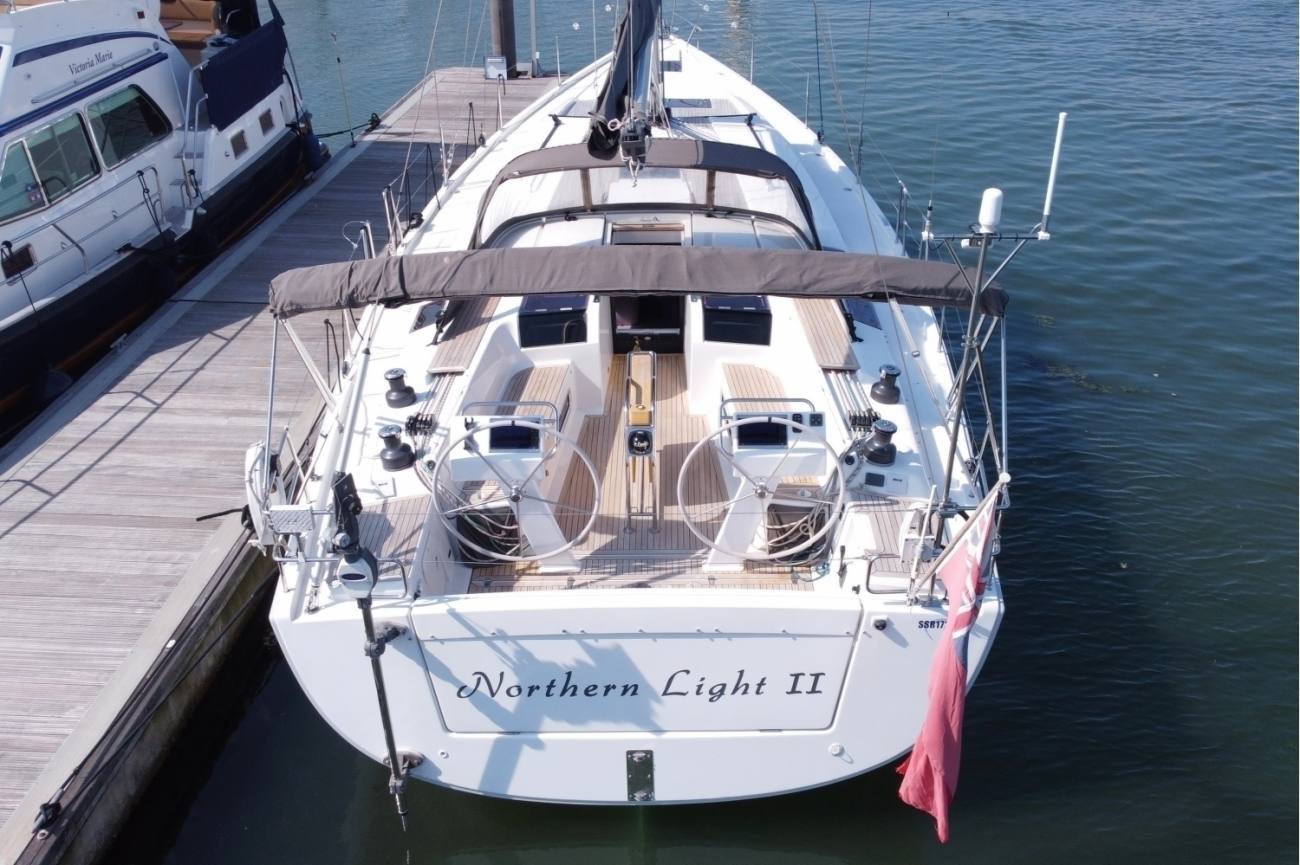

- Self draining cockpit.

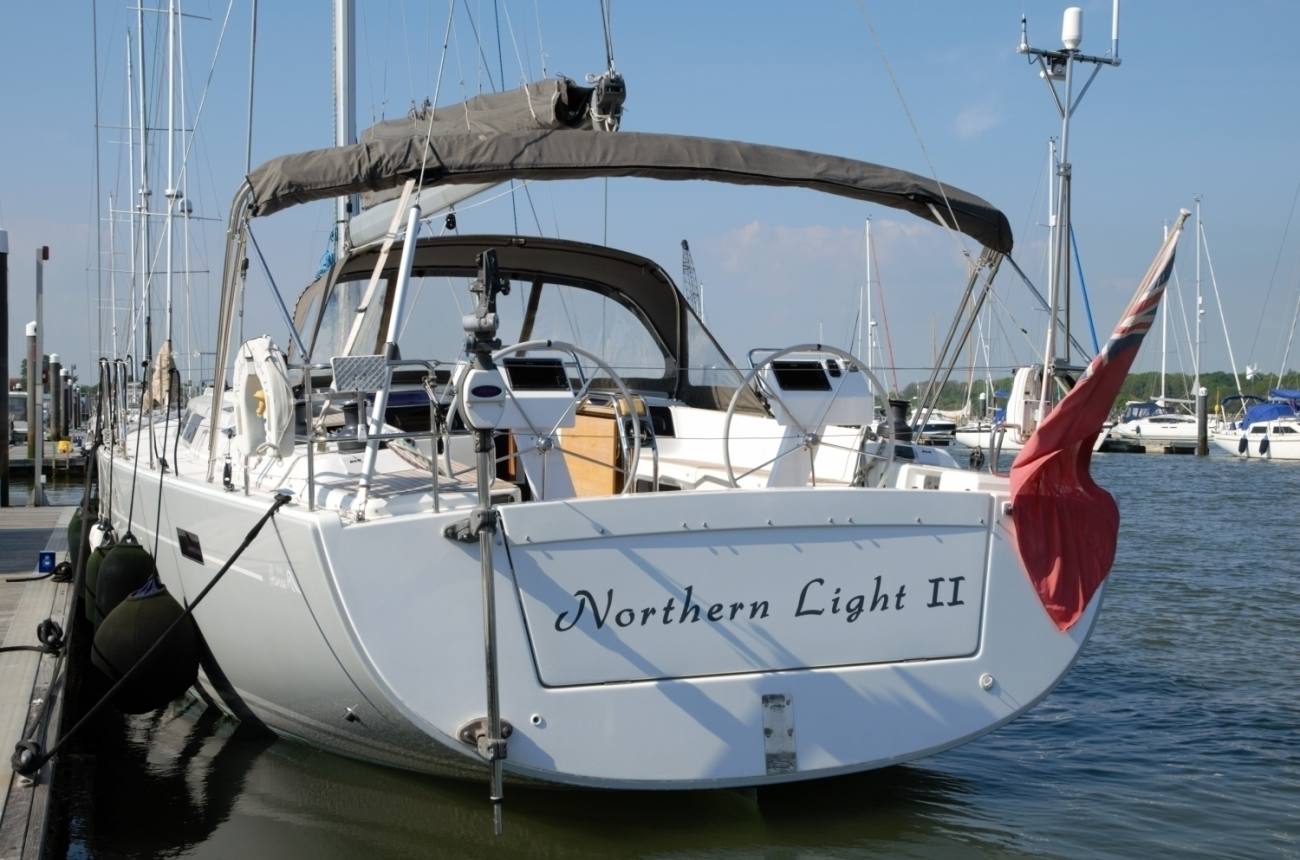

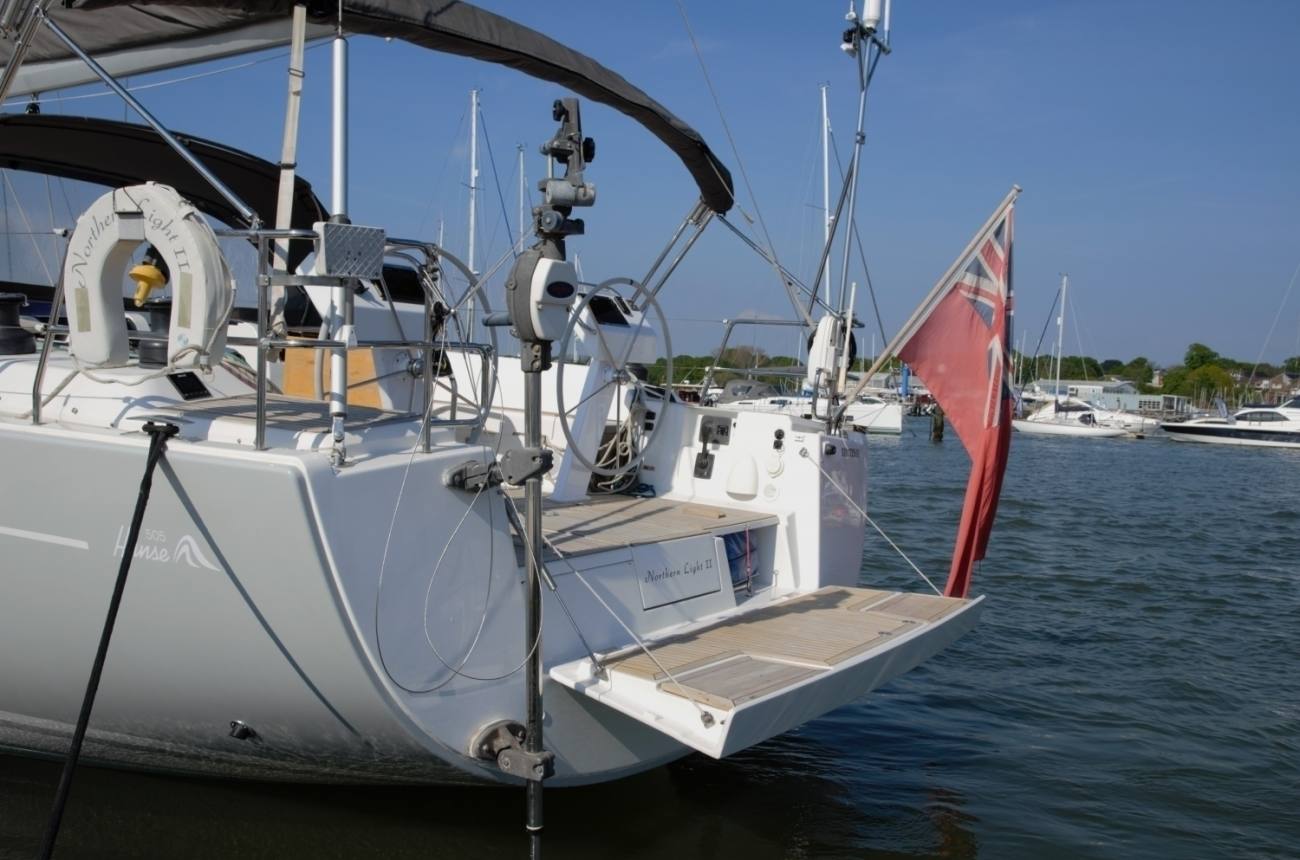

- Hinged swimming platform.
- Stainless steel swimming ladder.
- Hot & Cold transom swim shower.
- Dedicated space for life raft.
- Self draining gas locker stowage

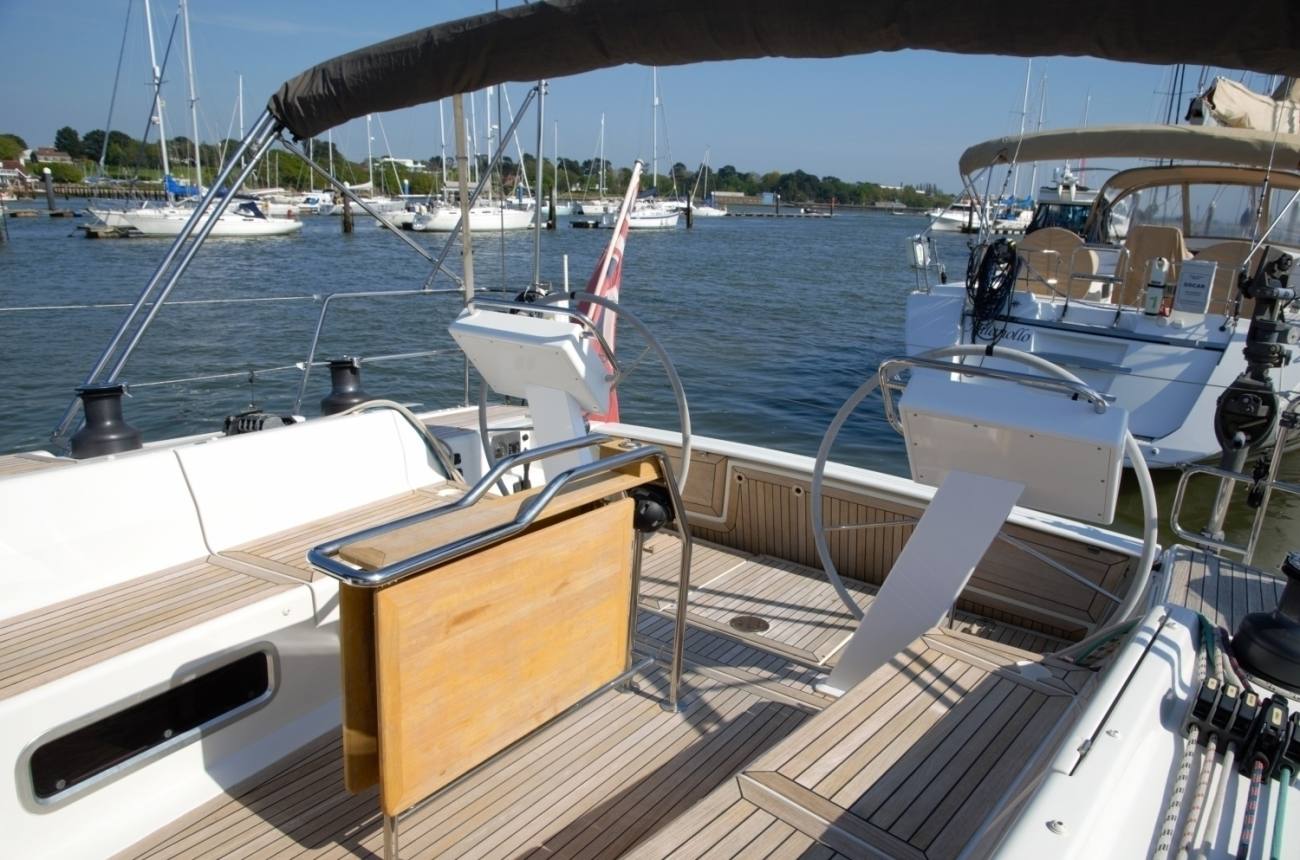

- Teak laid cockpit floor and seats
- Teak laid coach roof and halyard lids.

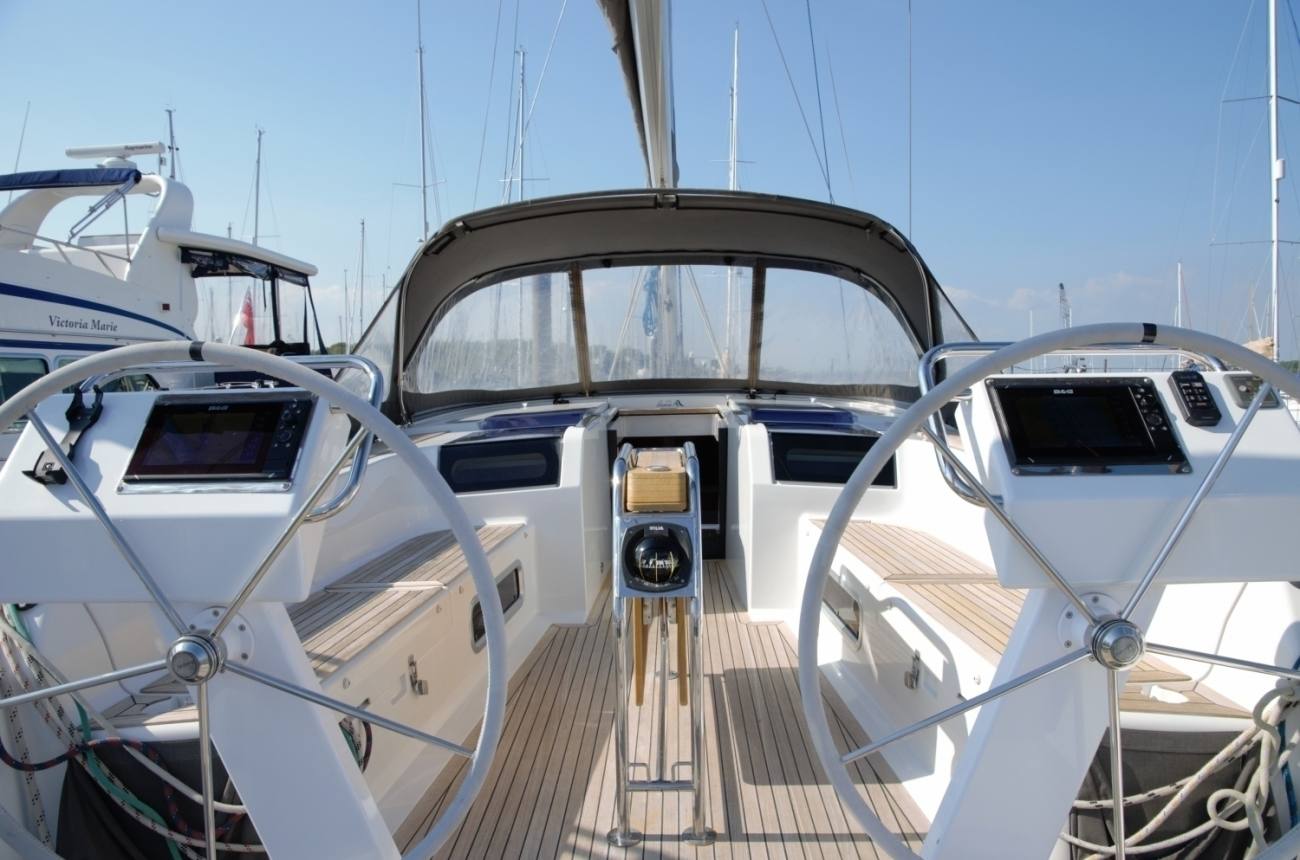

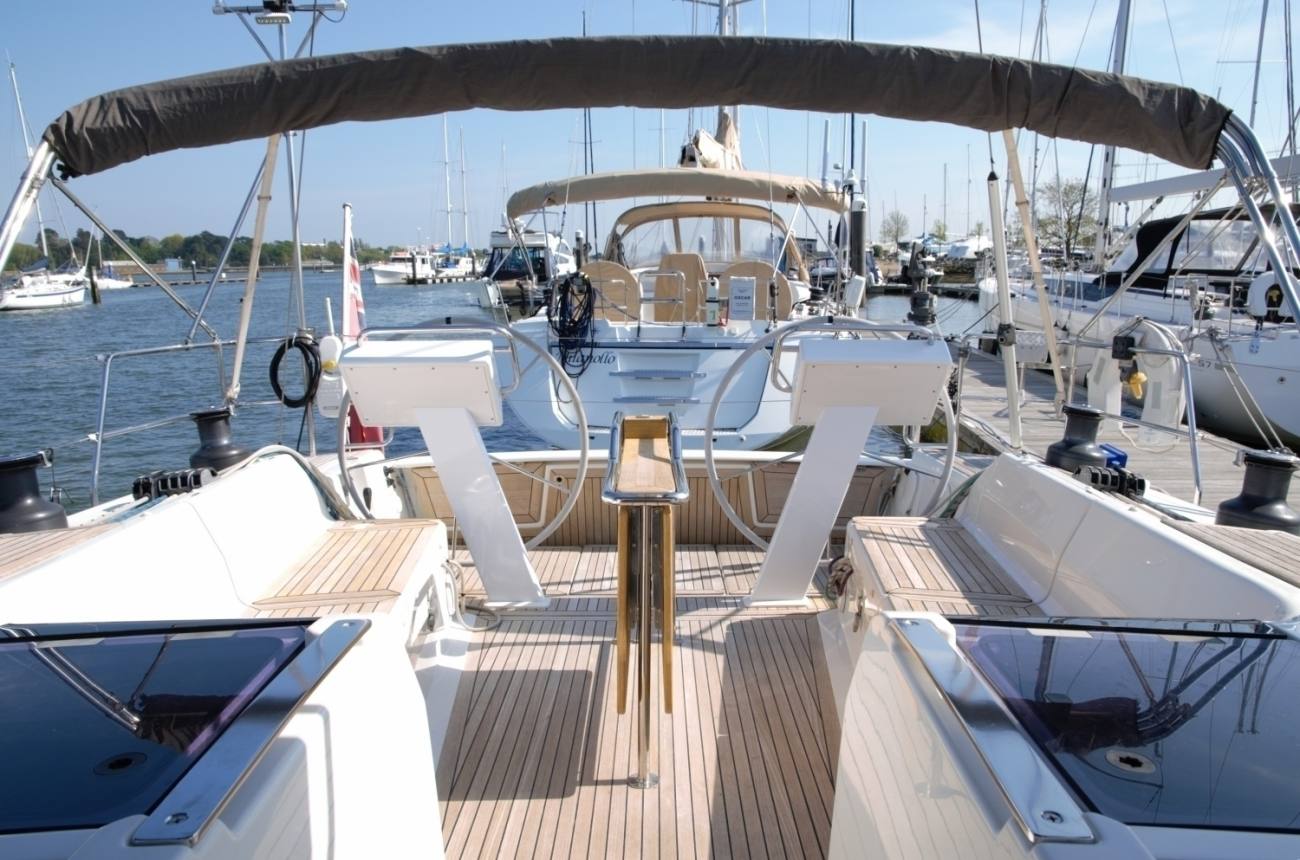

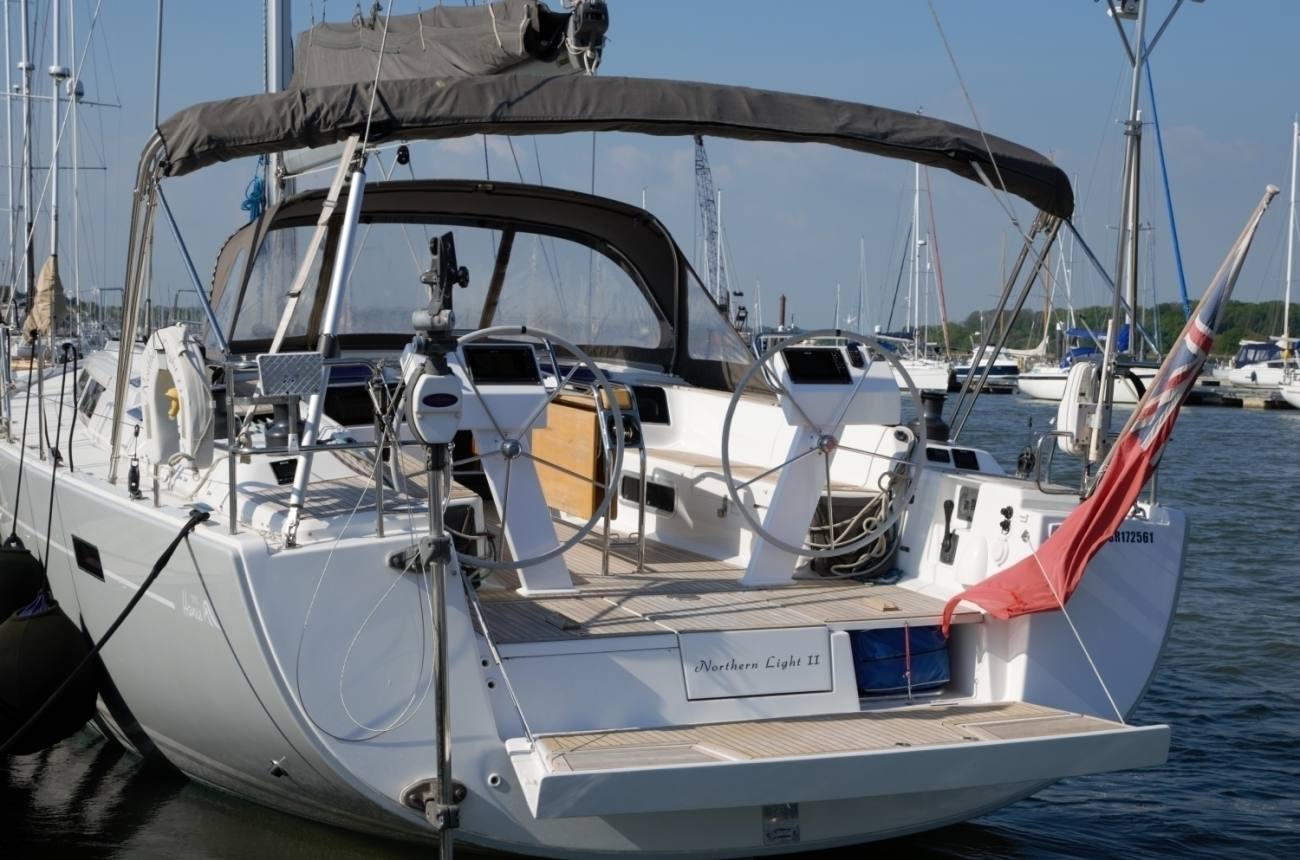

- Twin Wheels
- Engine controls at stbd helm
- Stainless steel cockpit table with teak top.

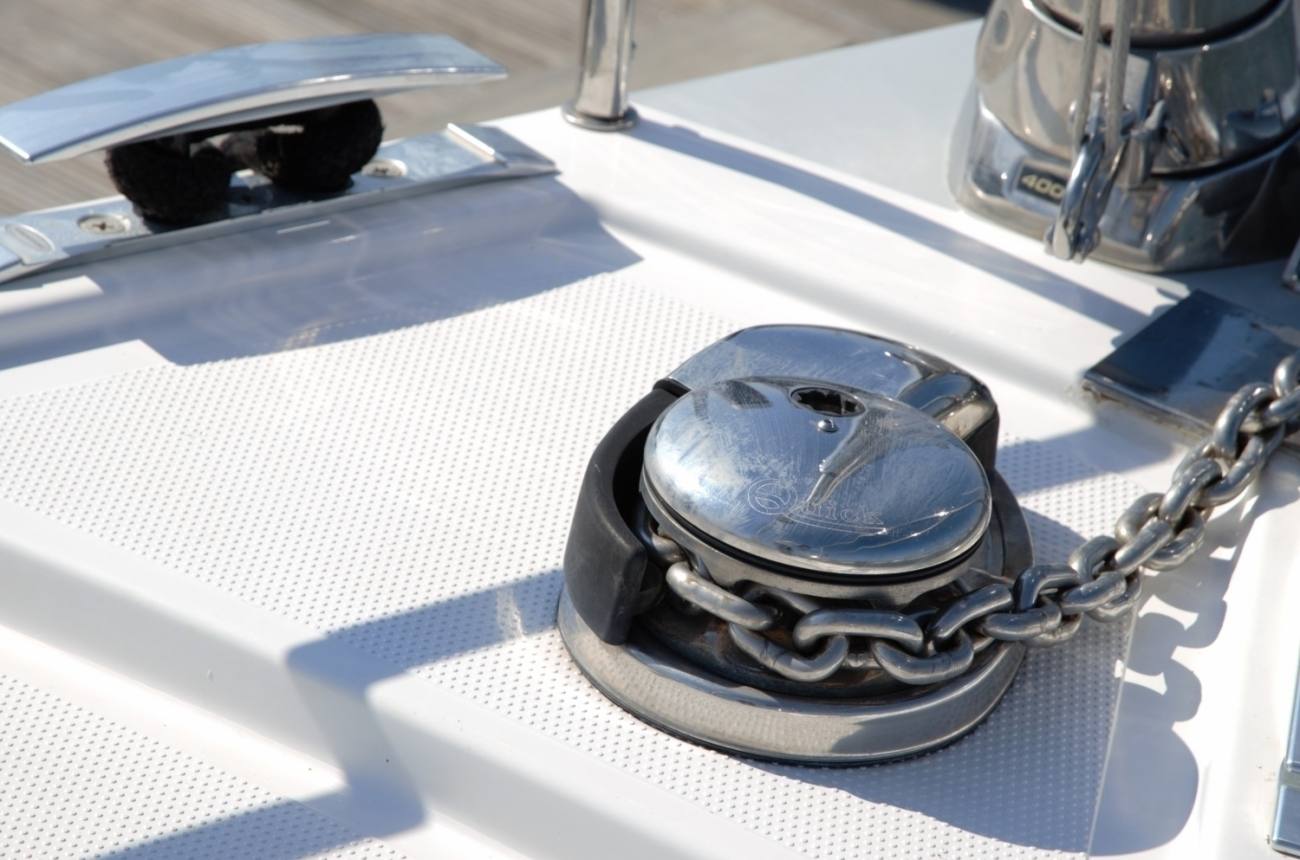

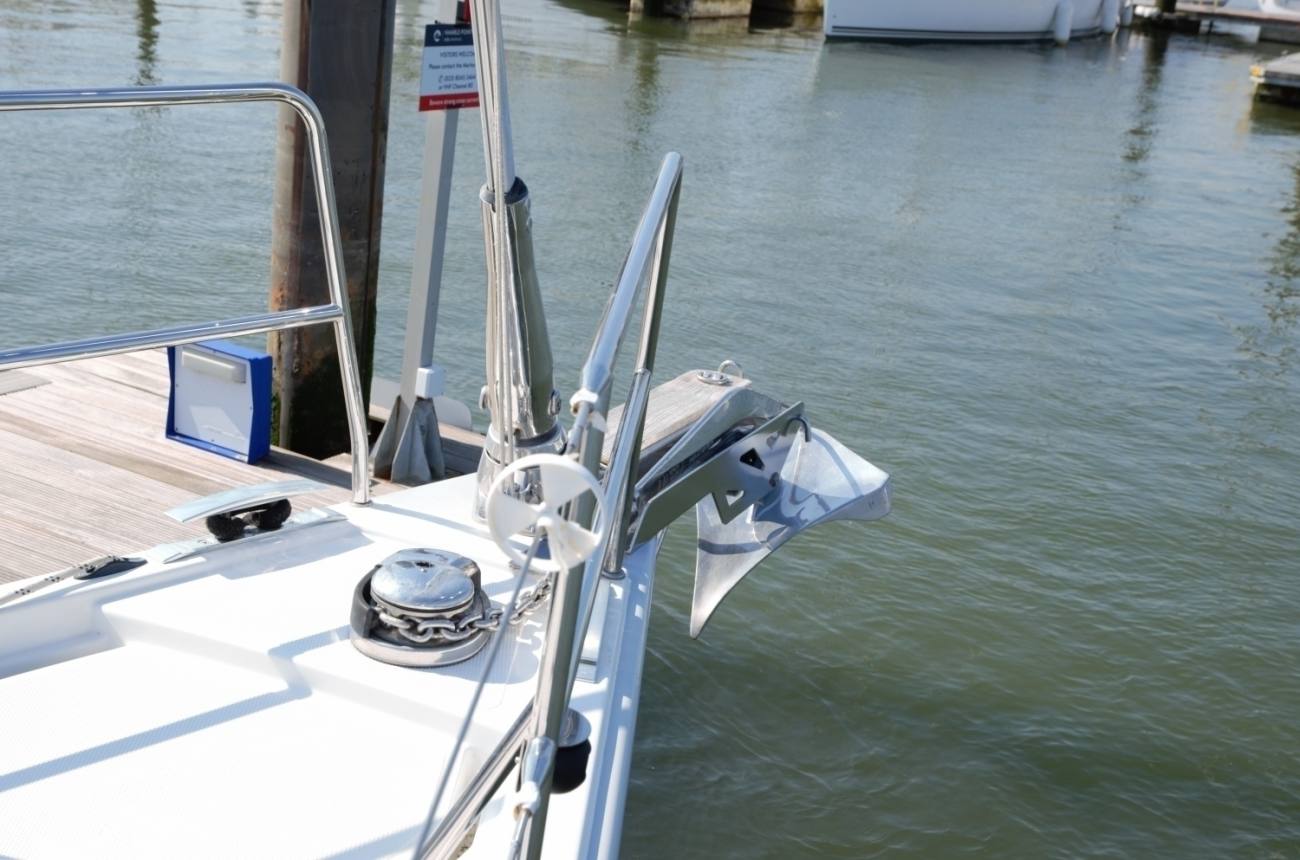

- Self draining chain locker with electric windlass inc remote controls and chain counter.

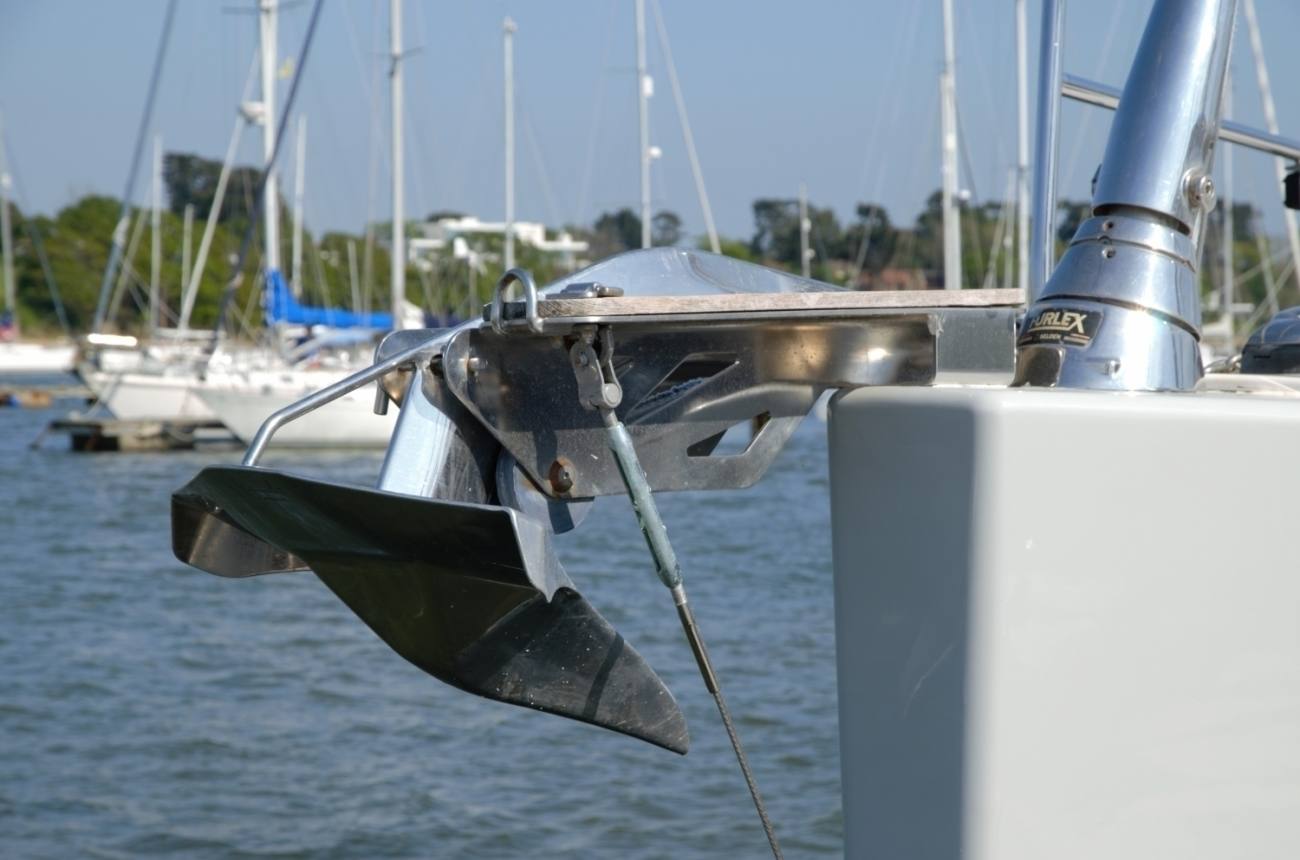

- Stainless steel Ultra 27 anchor with 100m of stainless steel chain
- Fortress anchor with 30m of weighted anchor line in carry bag
- Fixed anchor arm with anchor roller and teak foot step, plus integrated pad eye.
- Bob stay for genneker.
- Foredeck sail storage locker with ladder and large access hatch, Fitted out for organised stowage.
- From this locker there is access to the chain locker.

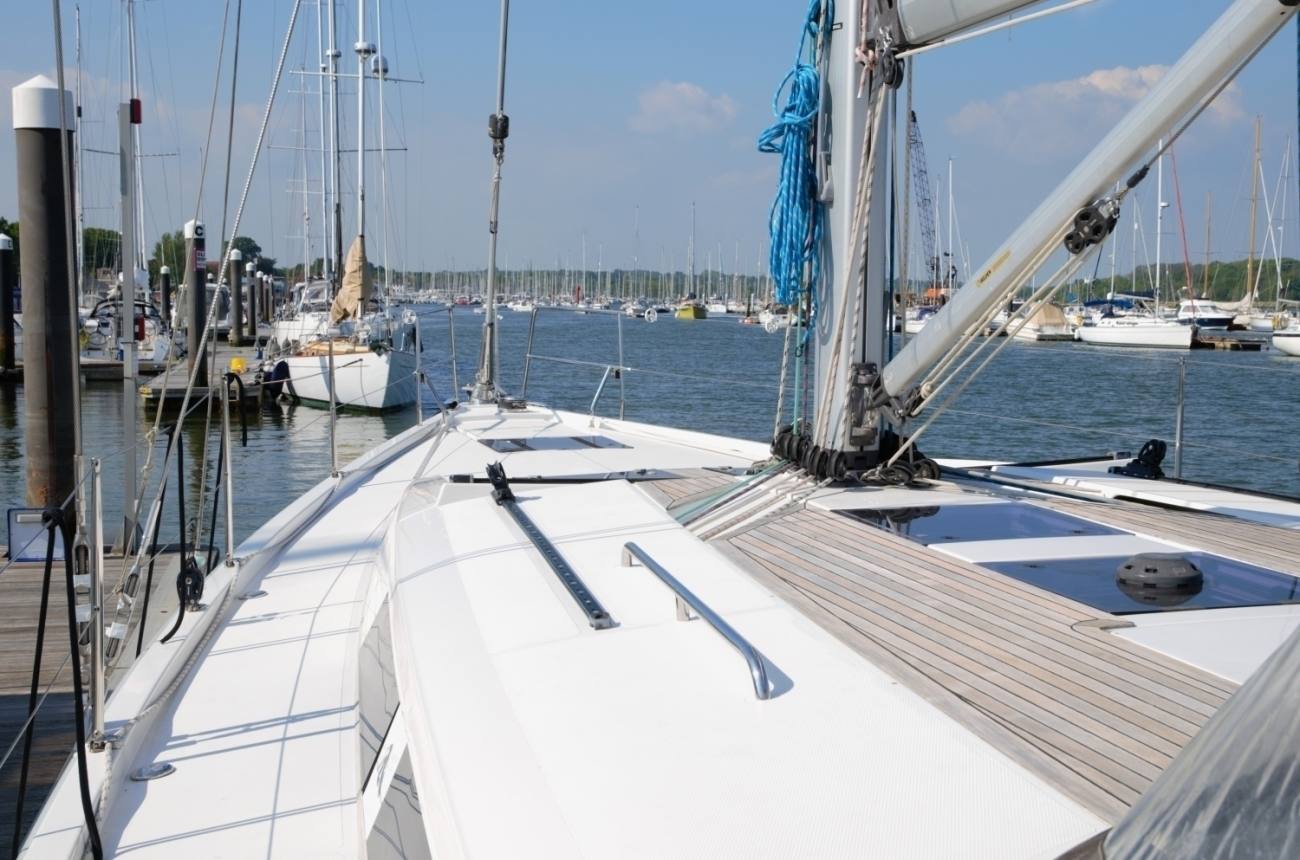

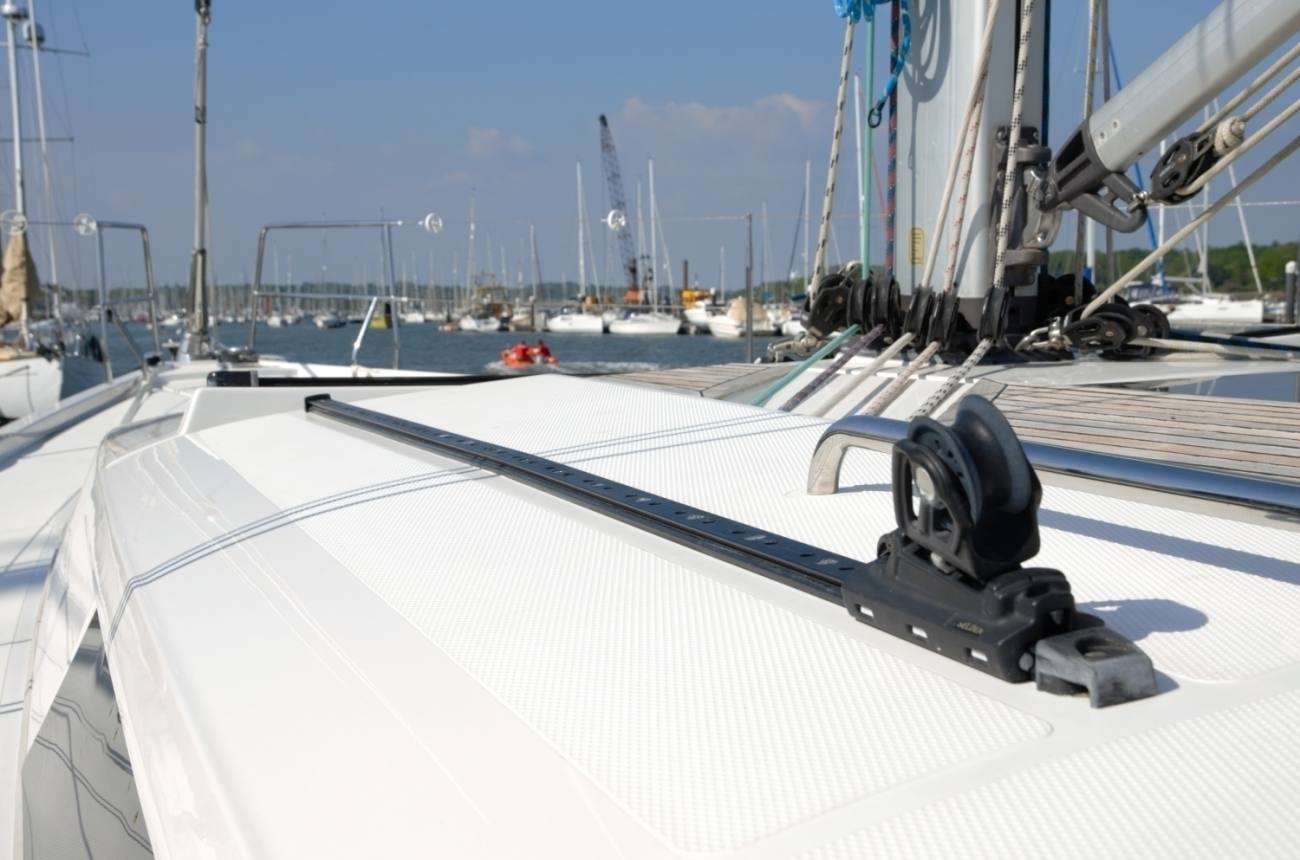

- Self tacking jib track integrated into the deck.
- Genoa tracks mounted on the side deck with towing cars.
- German Mid deck main sheeting system with 2 x standing blocks

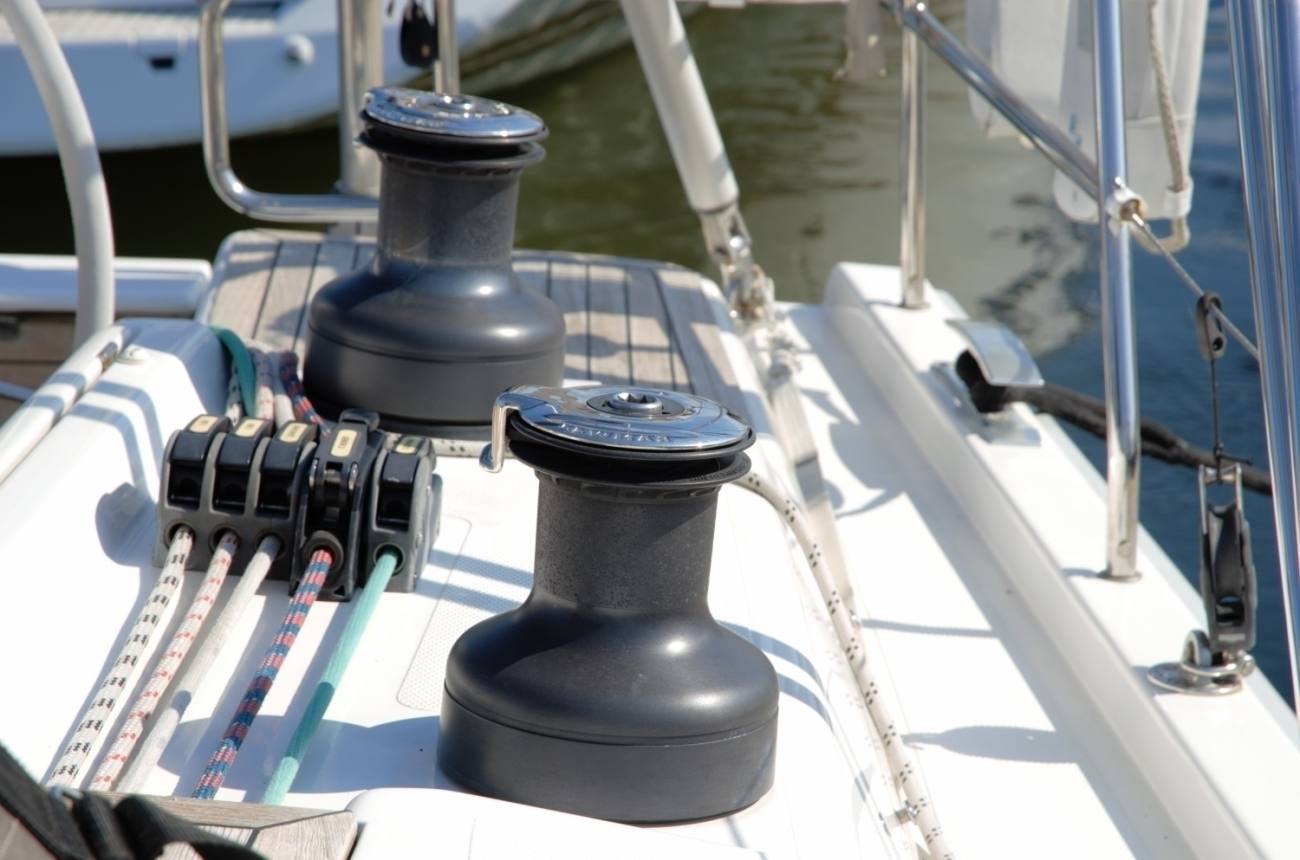

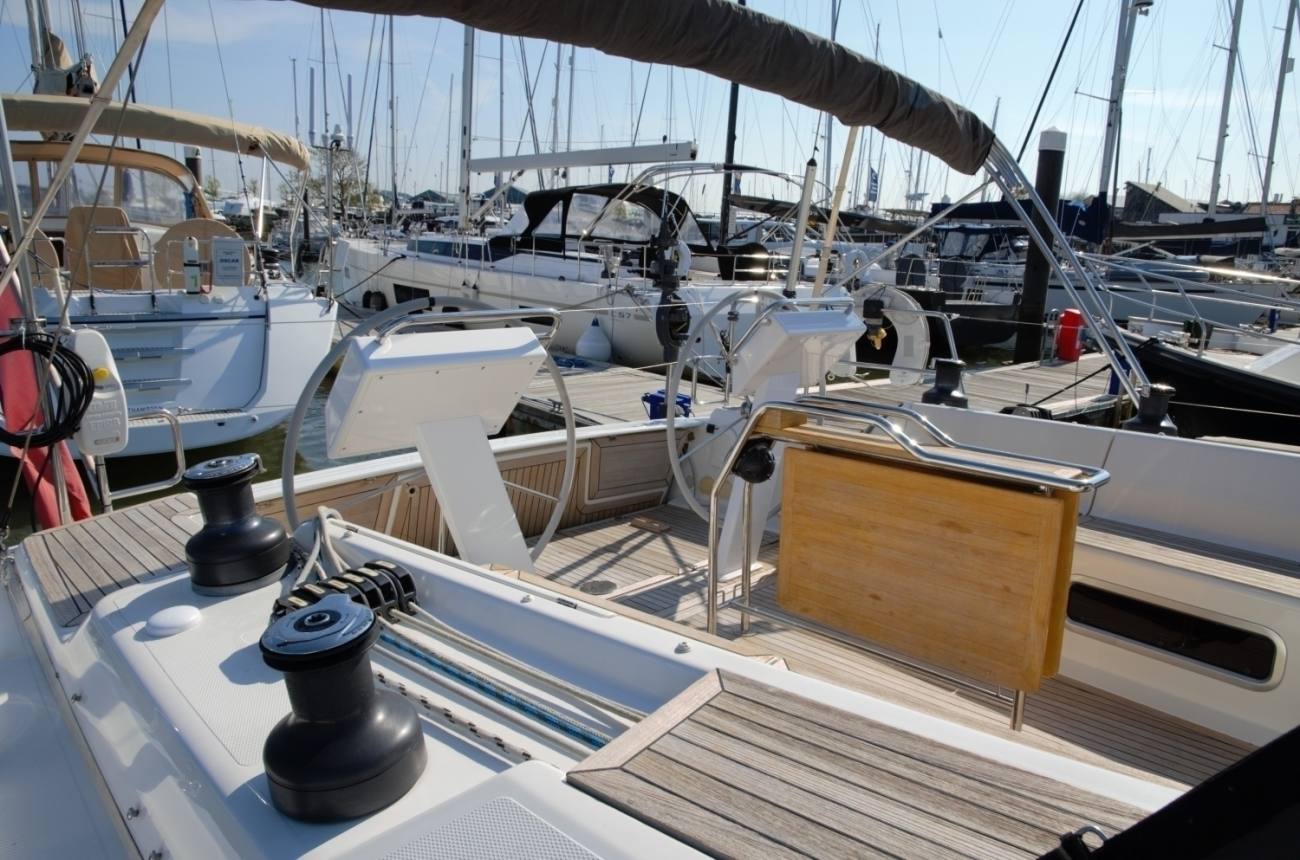

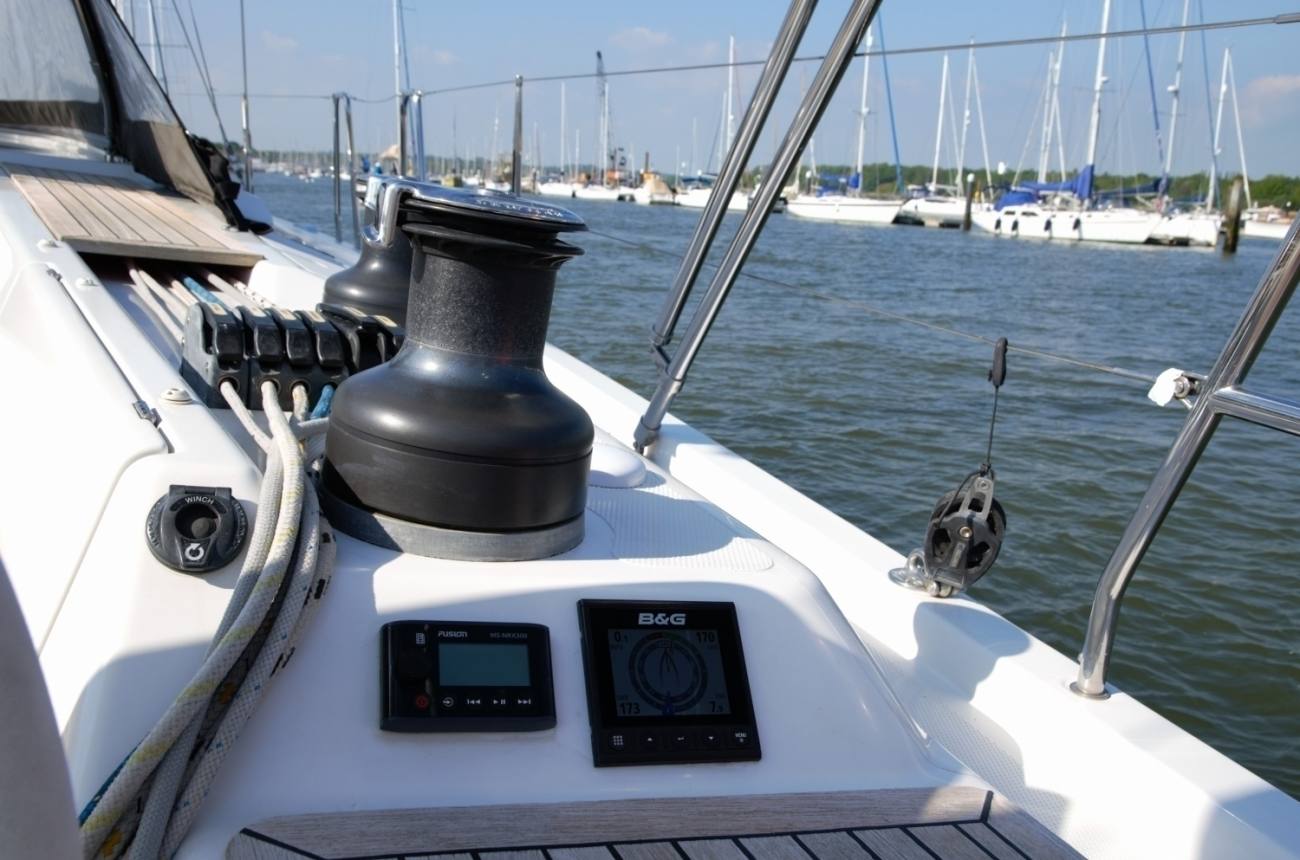

- Electric Lewmar 55 EST EVO primary winches
- Lewmar 55 ST EVO Secondary winches.
- 10 Deck Jammers via deck sheave organisers. Lines led aft under panels to avoid rolling under foot.

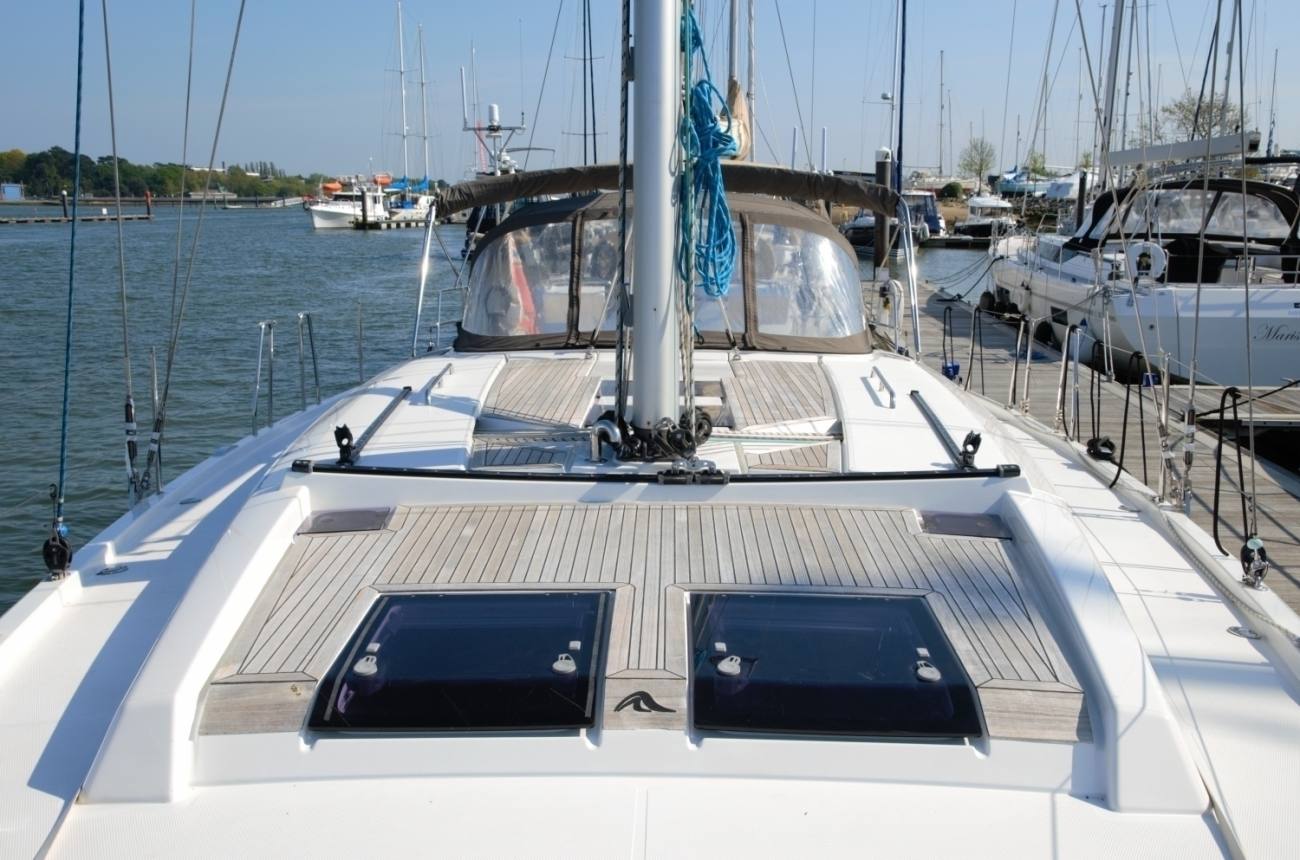

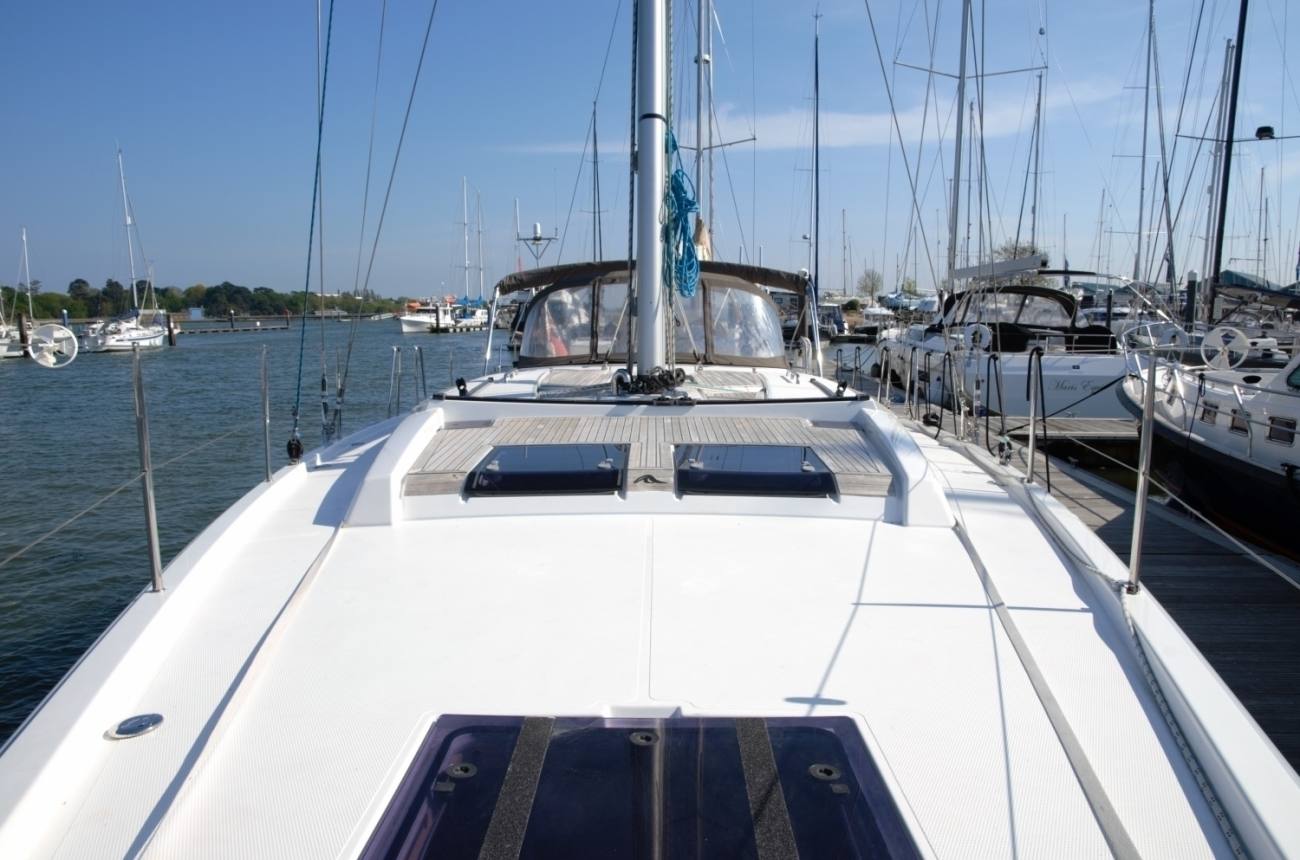

- 7 Flush hatches
- 4 opening hatches
- 4 opening side windows on coach roof
- 2 large opening portlights in the cockpit
Interior & Accommodation
3 Double cabins and 3 heads/showers. The Owners cabin forward has a large island berth, a separate heads to port and shower to starboard.
High quality interior joinery in American cherry. Upgraded flooring in classic teak and holly stripe.
Blind set for hatches and side windows.
12v fans for cabins
A1/B1/C2/D1 layout

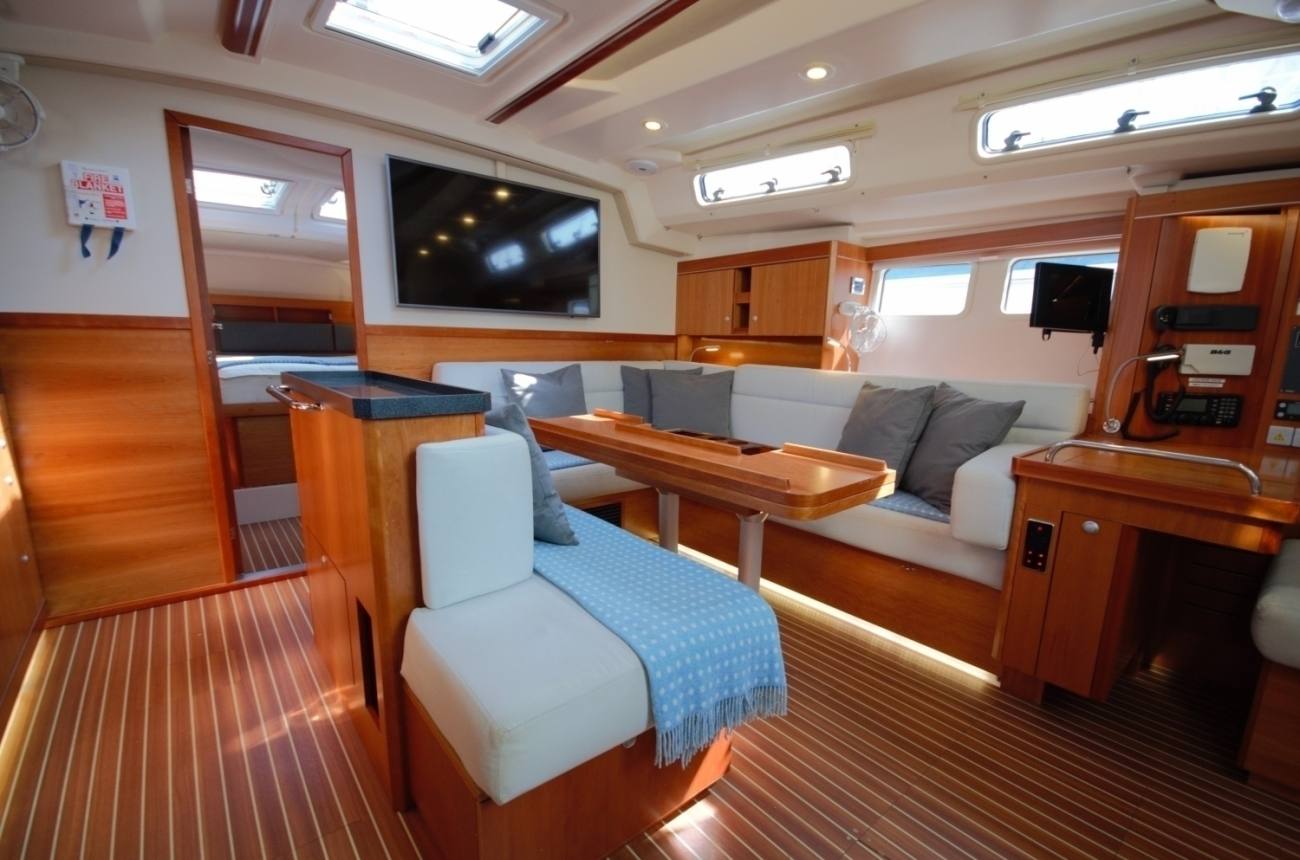

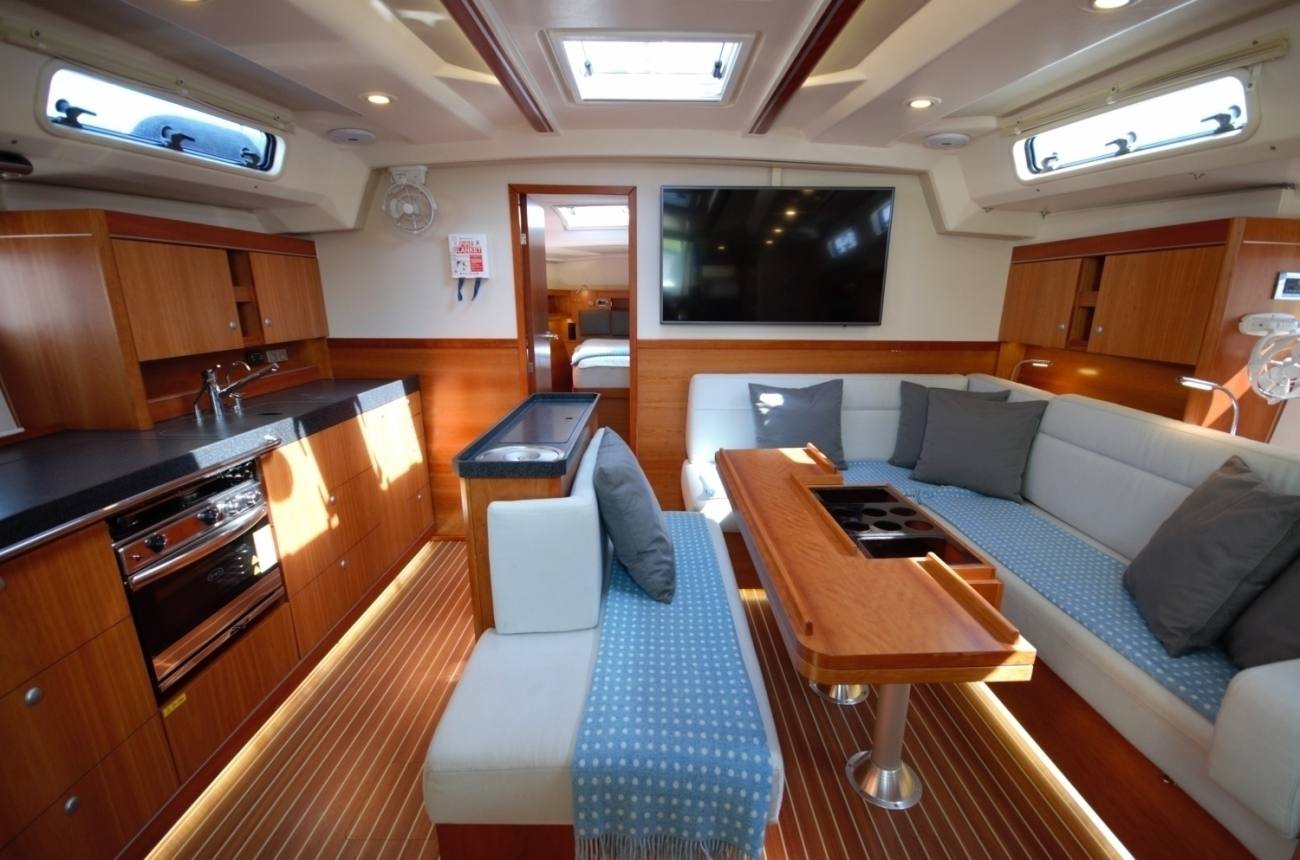

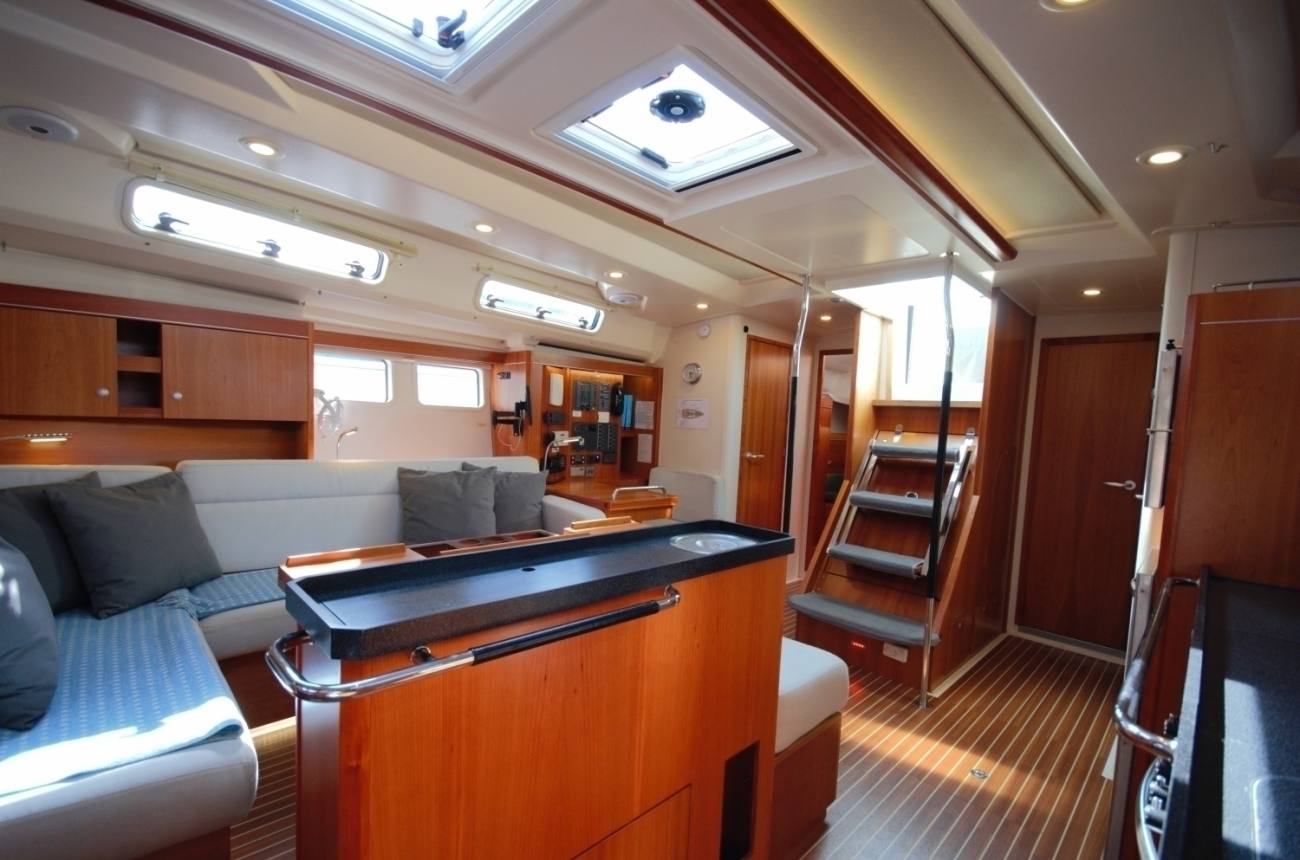

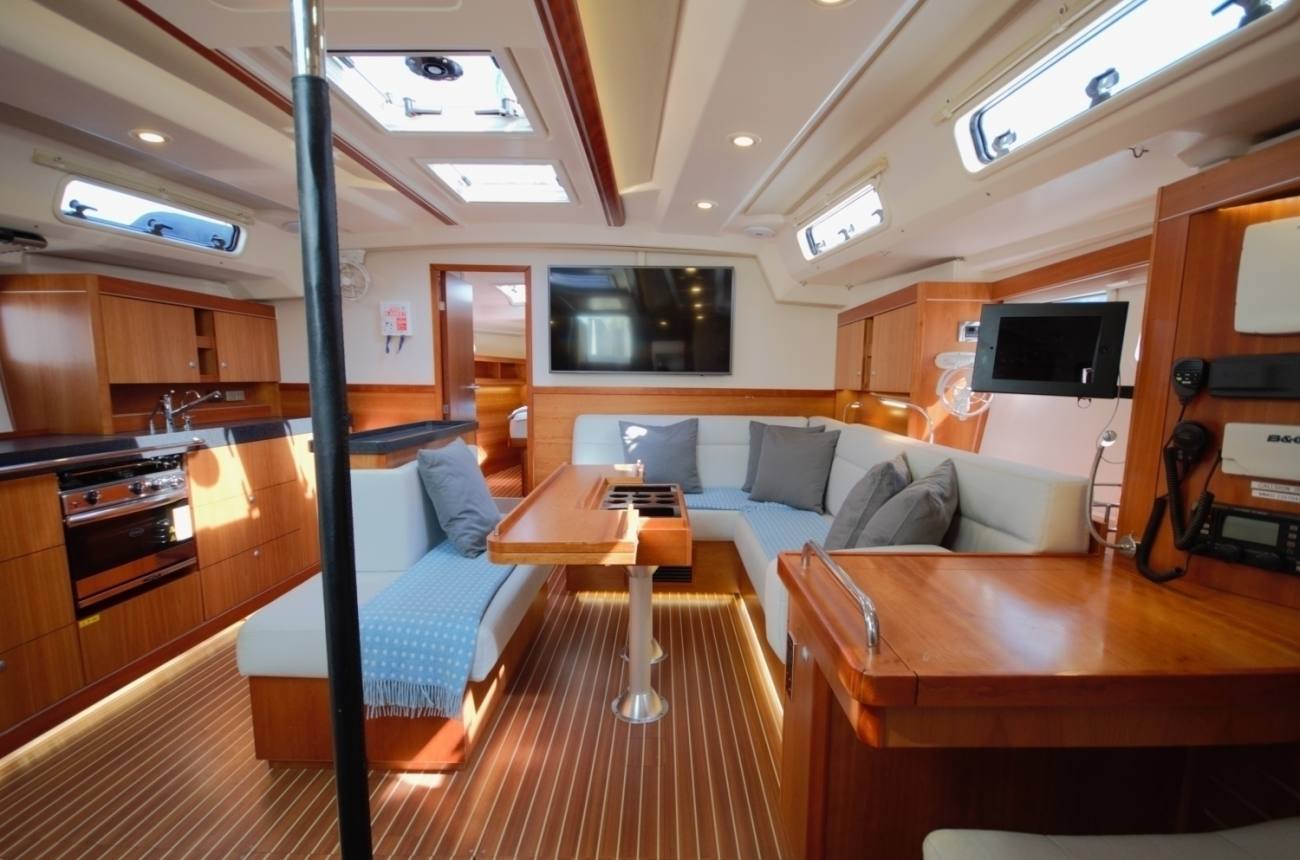

Saloon
- Re-upholstered saloon seating in Sunbrella Deauville silver grey
- L Shaped settee on starboard side with fixed table with bottle storage
- Centre piece with bench and storage for drinks, including ice bucket.
- 2 reading lights on the forward bulkhead
- Shelves and lockers along the hull with fiddles
- 2 large hull port lights
- Forward looking navigation table to stbd with lockers, drawers and shelves.
- Galley along the port side.
- 2 hatches
- Hatch vent
- 4 opening side coach roof portlights
- 2 overhead integral handholds
- Dedicated storage space under floorboards

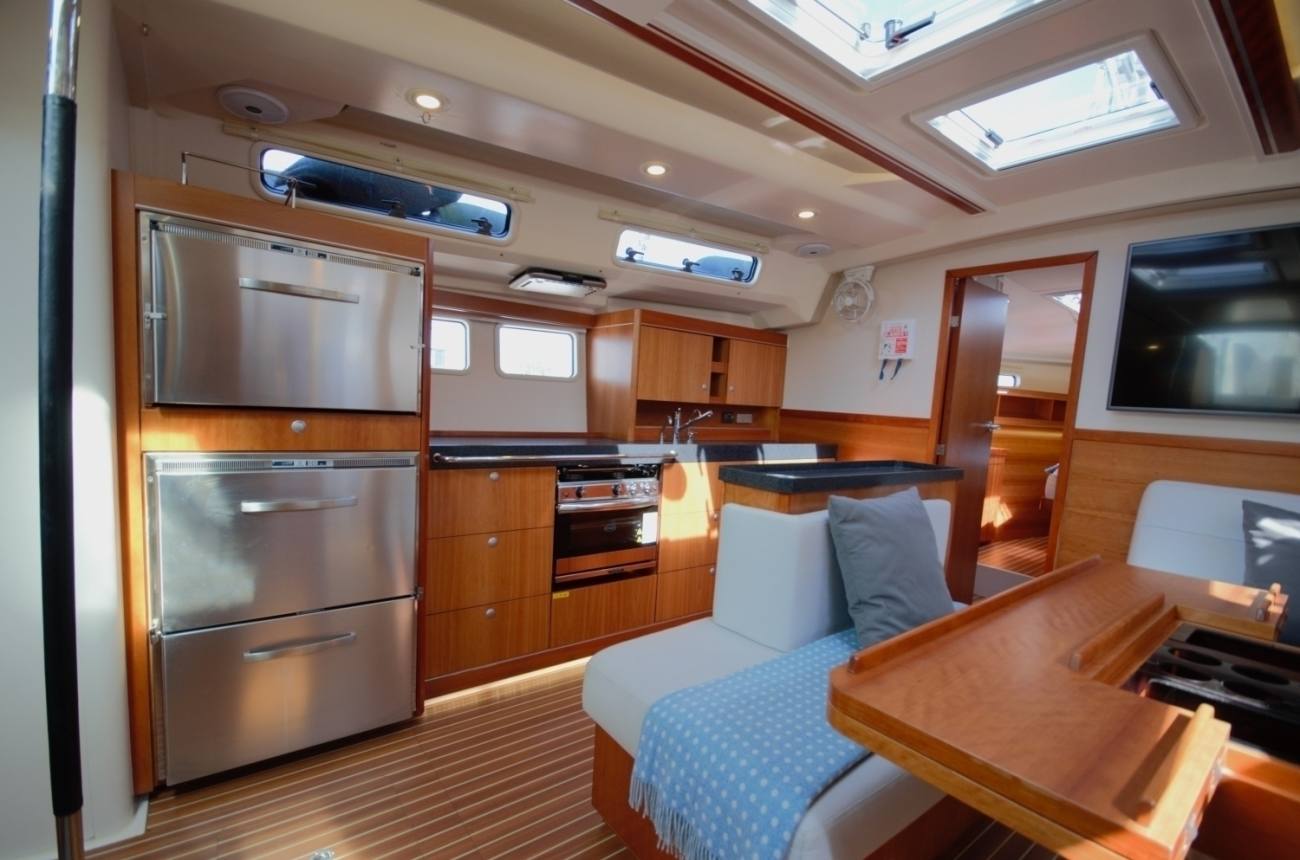

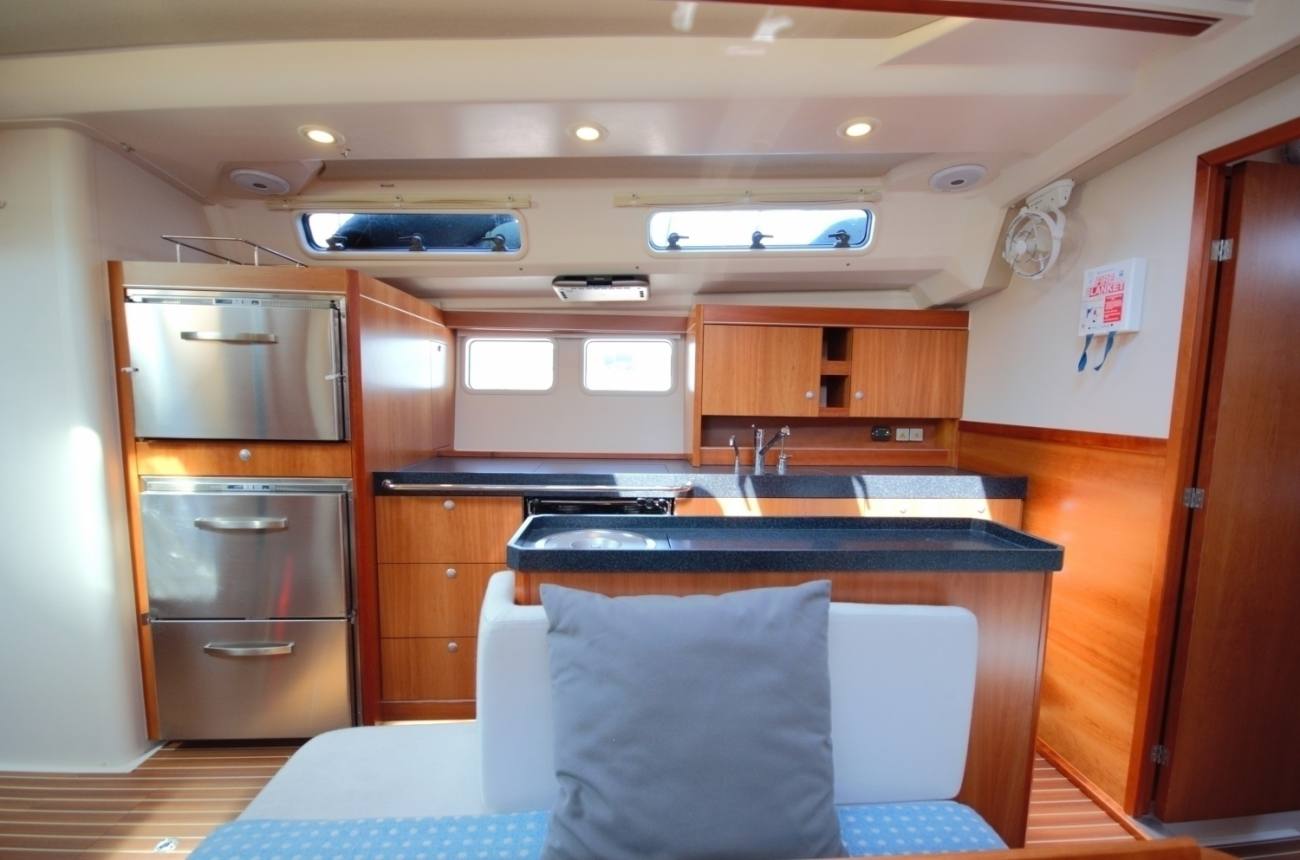

Galley
- Linear galley to port with drawers and storage space
- 3 Burner gimbled stove with oven.
- 2 x stainless steel sinks with mixing taps
- Seagull IV water filter system and faucet (New 2023)
- Solid Corian work surface in black quartz
- LPG Gas system with self draining LPG bottle storage in cockpit.
- 2 x Large drawer stainless steel 140 litre (approx) refrigerator.
- 95 litre freezer drawer
- Lockers and drawers
- Waste Bin
- Fridge/Freezer
- Microwave - New 2023
- Nespresso Coffee machine

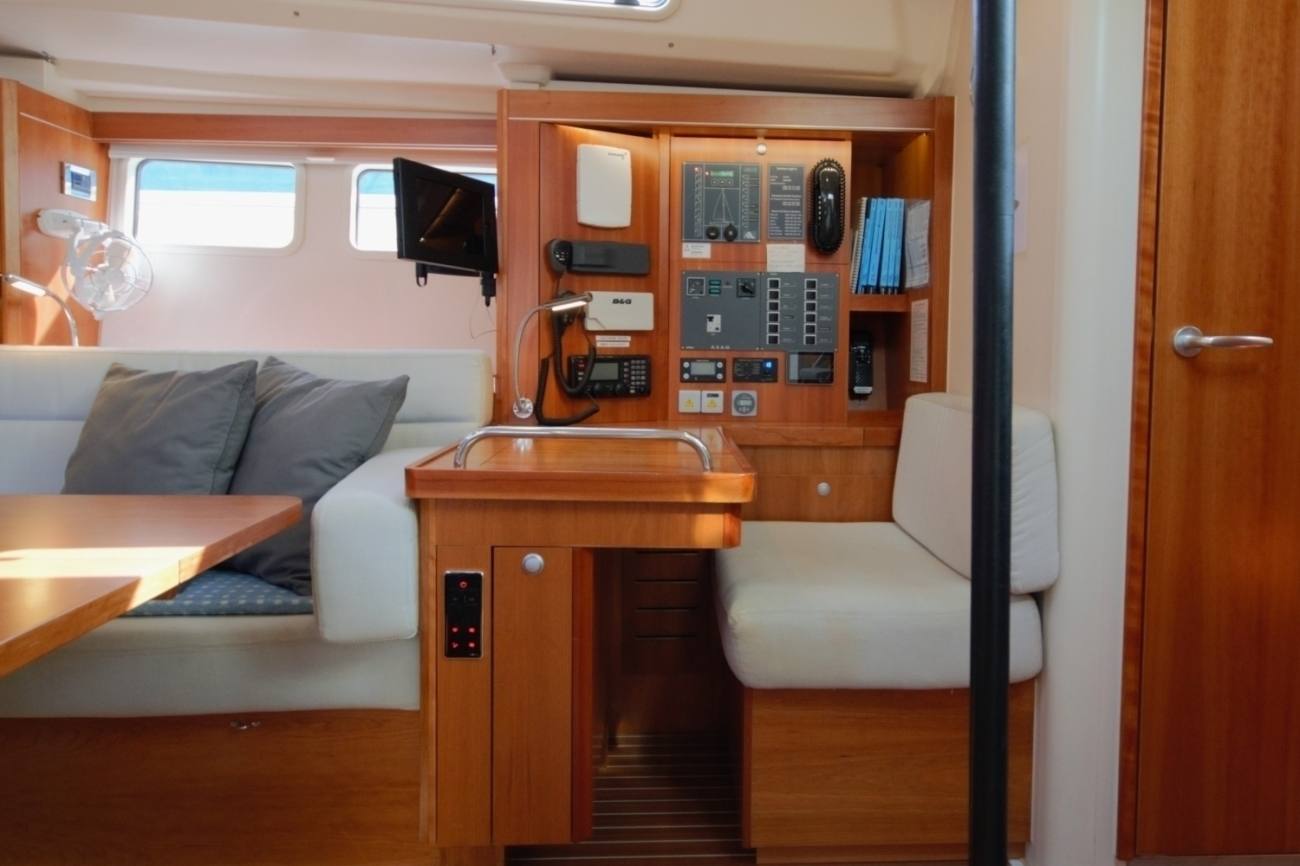

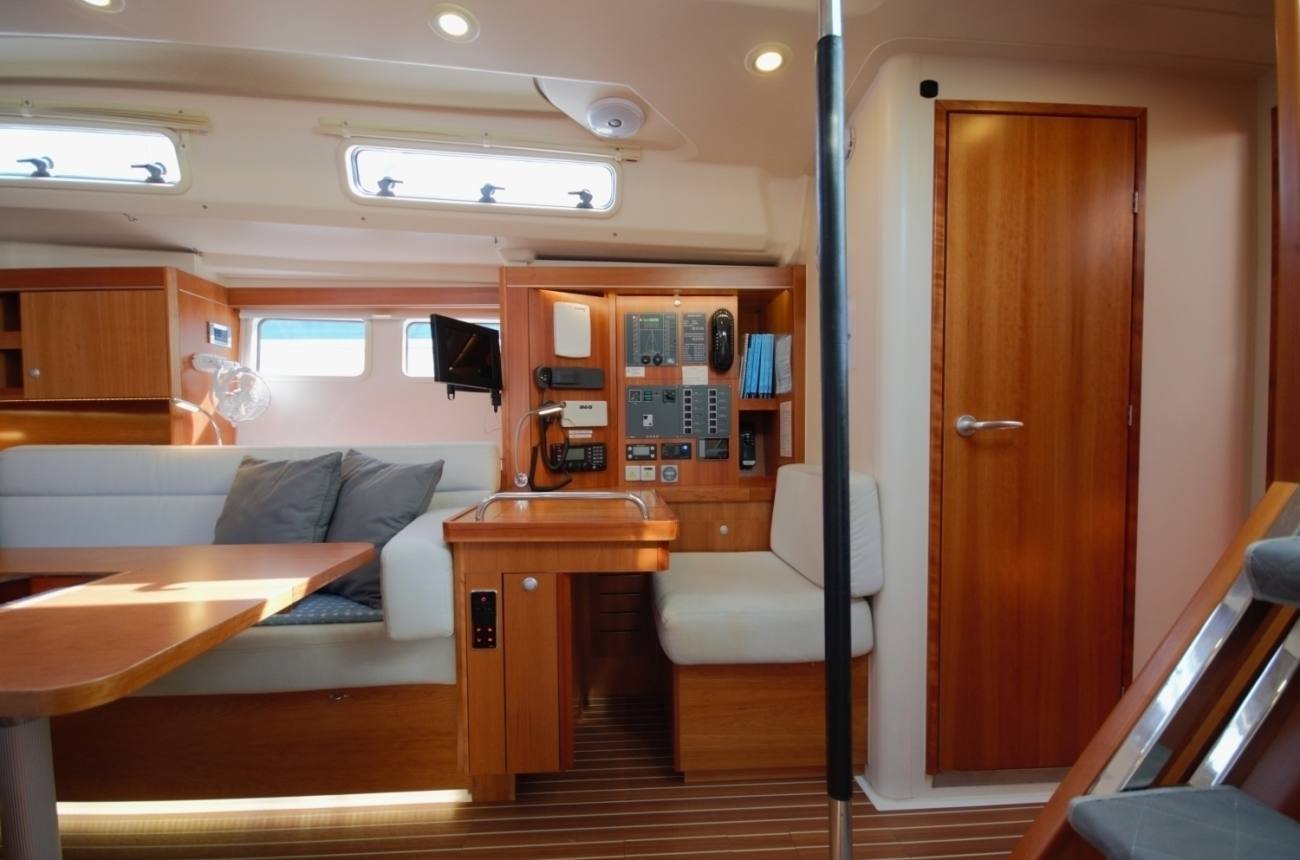

Navigation Station
- Set to starboard,
- Forward facing chart table with stowage
- Nav seat
- Switch panel and instruments

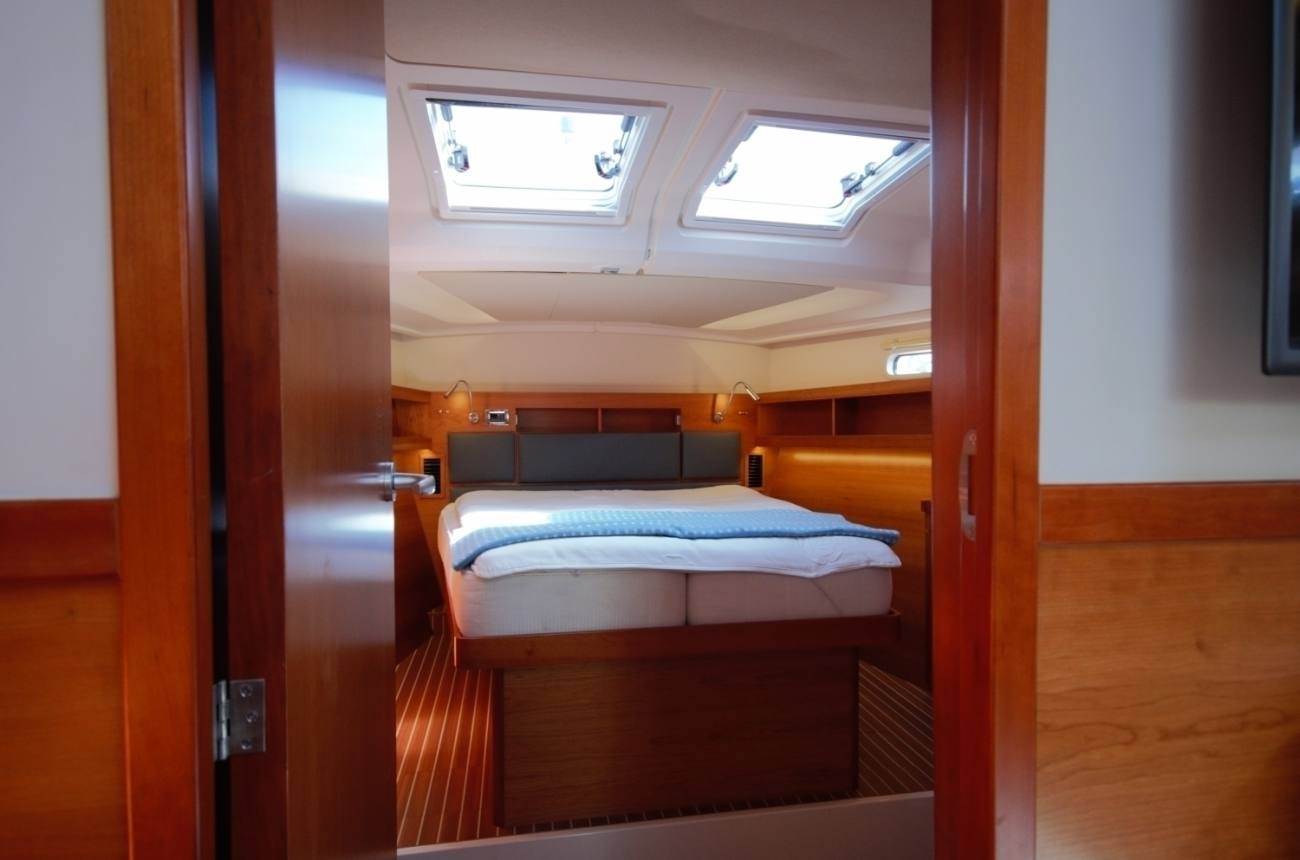

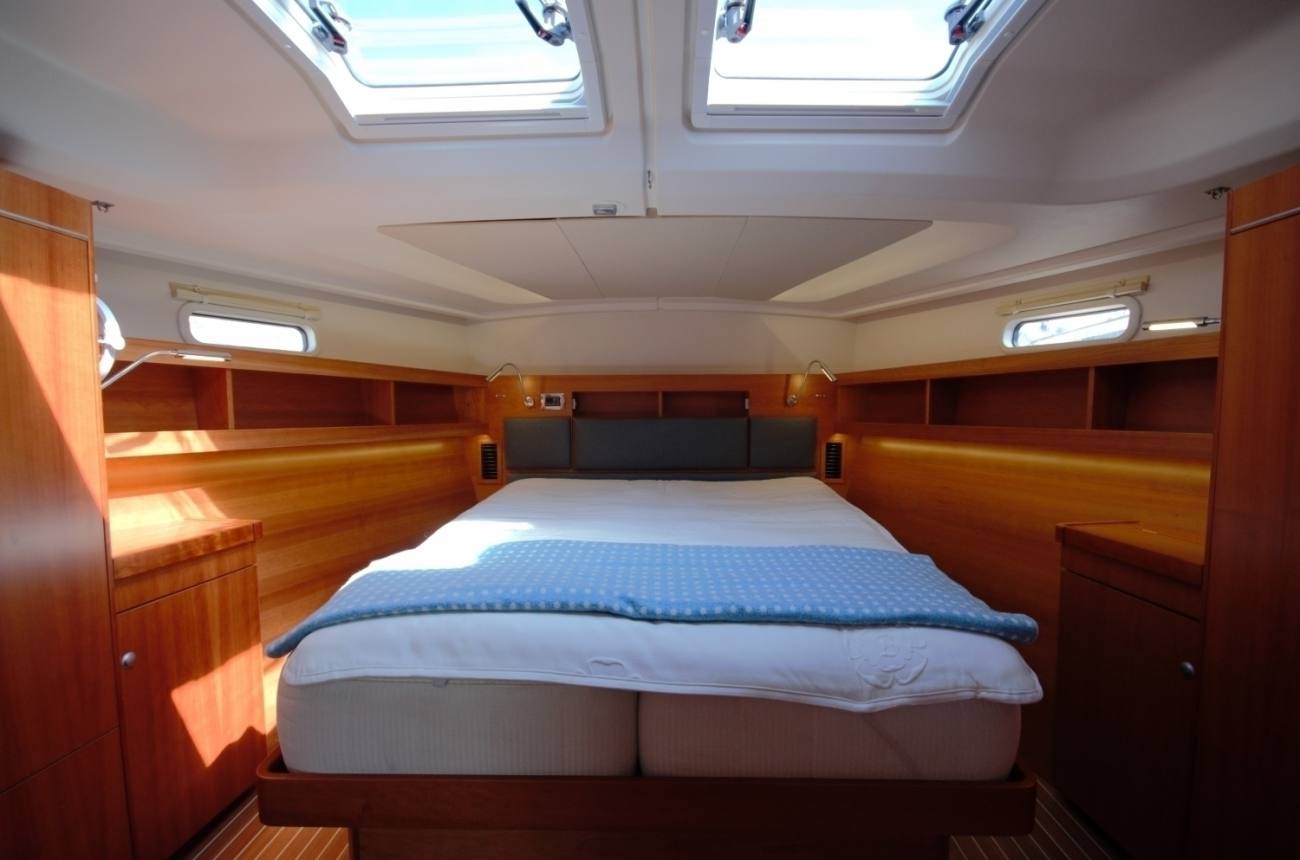

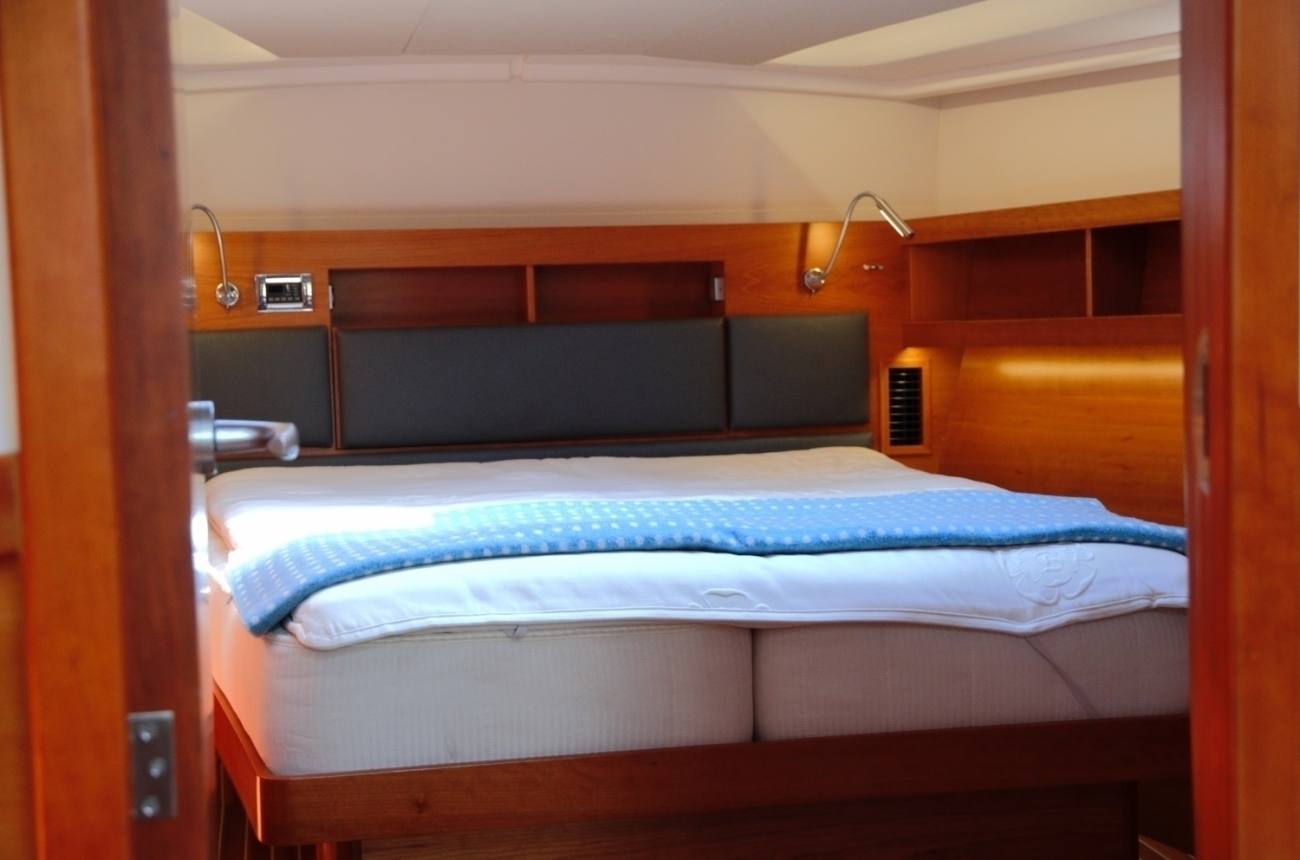

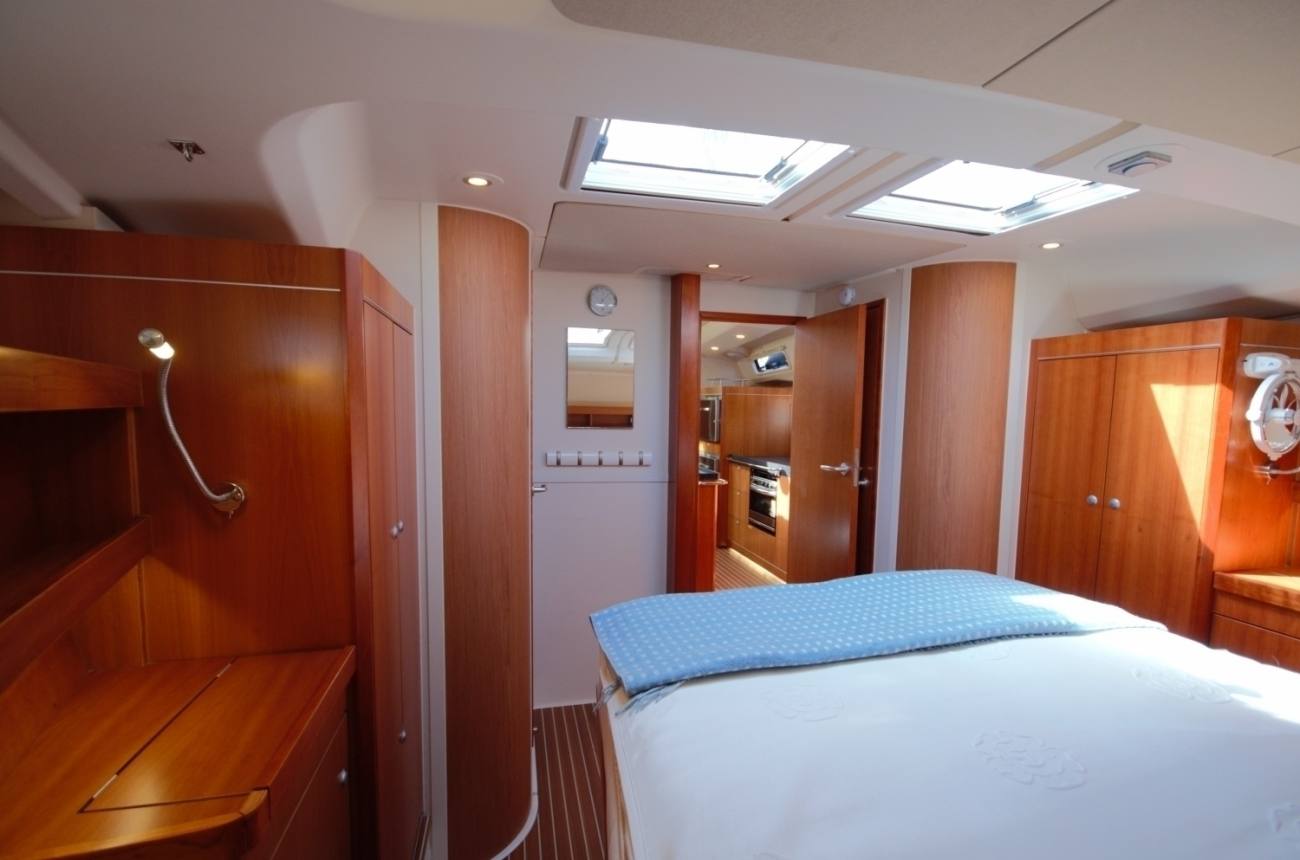

Forward Cabin
- Island double berth with pocket sprung mattress and bespoke bedding.
- 2 Reading lights
- 1 large hanging locker with shelves
- 1 smaller hanging locker with shelves
- 2 shelves along the hull side
- 2 hull port lights
- 2 large hatches
- Dressing table
- Separate head with lockers and mirror
- Separate shower compartment
- 2 small opening flush hatches above heads and shower for ventilation.
- New Dometic 12 master flush fresh water WC
2 x Aft Cabins
- Double berth ( with new bespoke bedding ) in each cabin with...
- Hanging locker with shelves
- 2 reading lights
- Lockers along the hull sides
- 1 x hull portlight
- 1 large opening cockpit portlight.
- 1 x opening overhead port light in port cabin
- 2 x opening portlights in stbd cabin

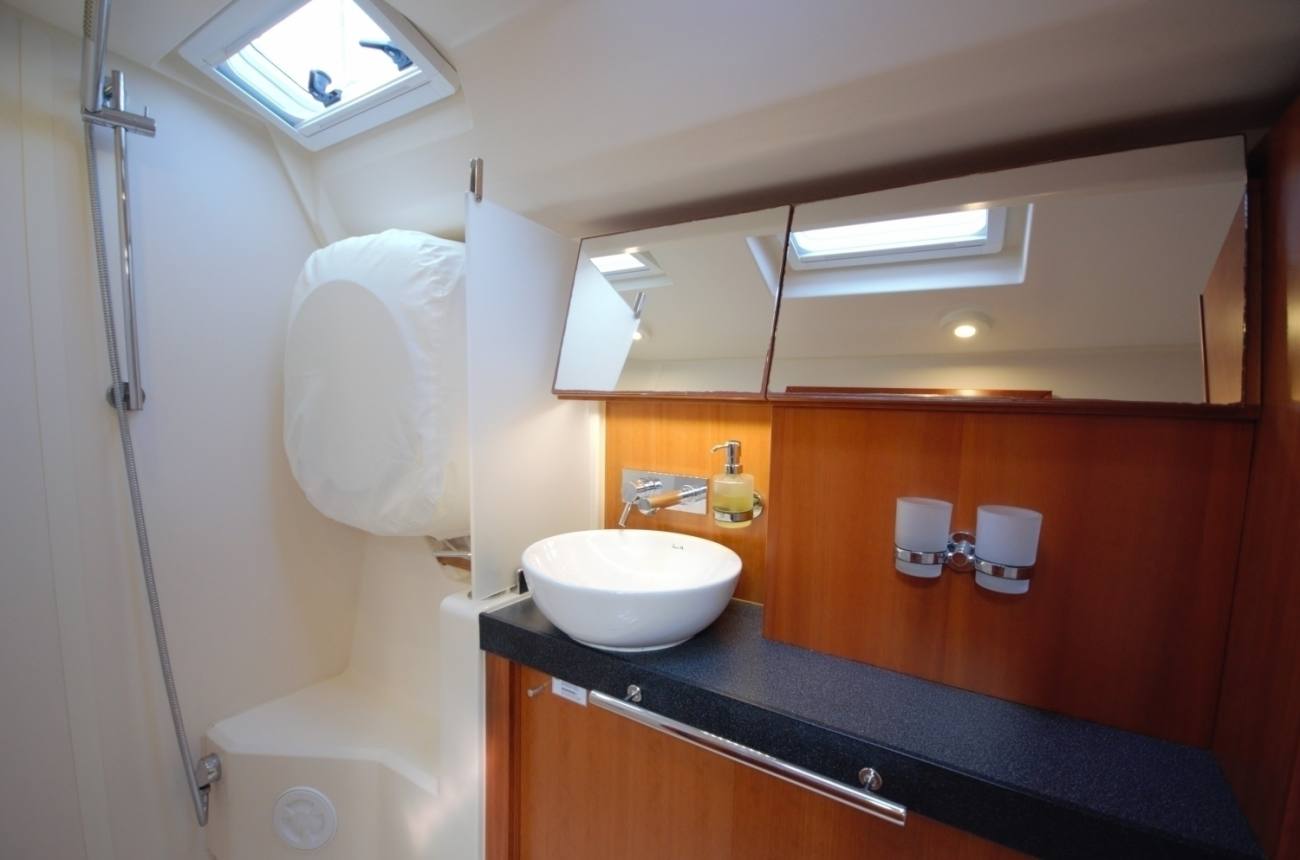

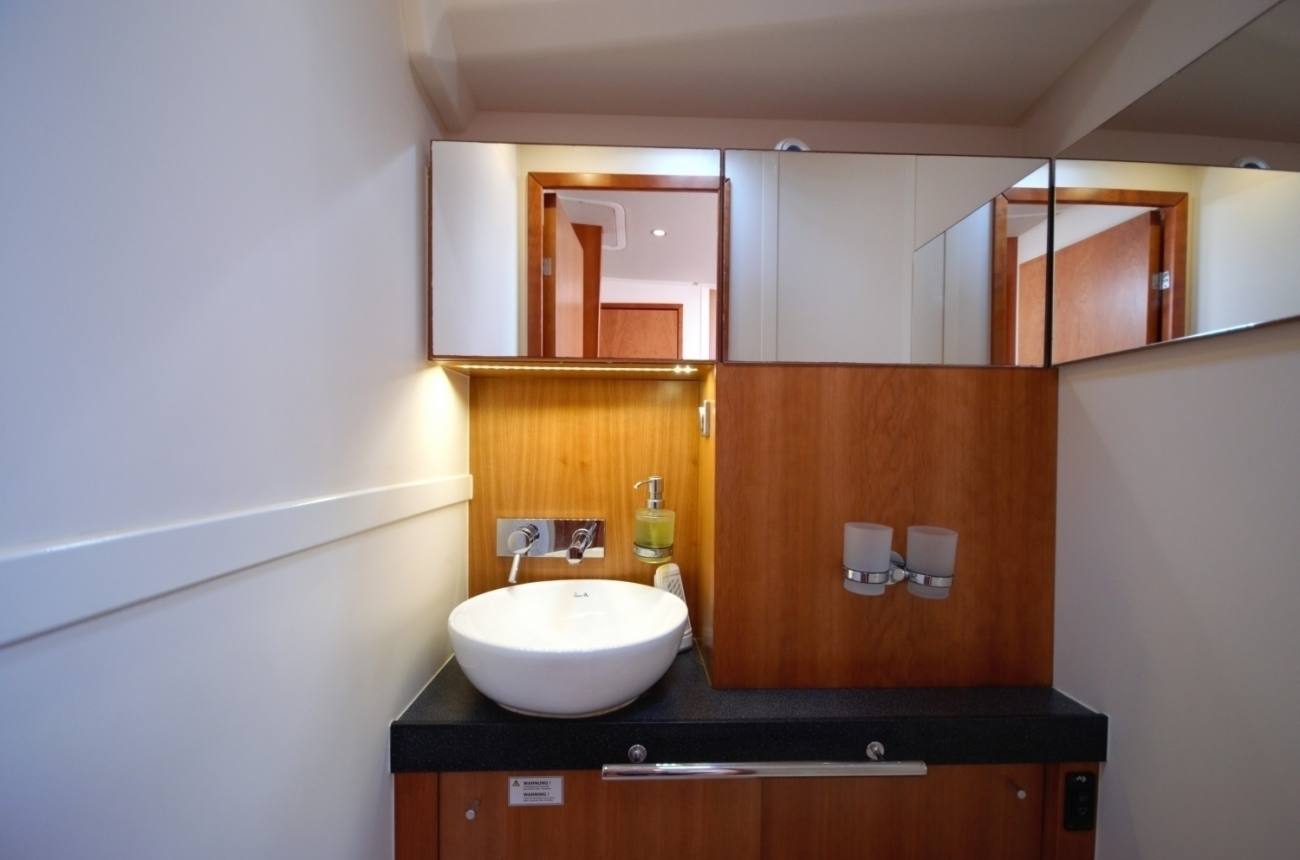

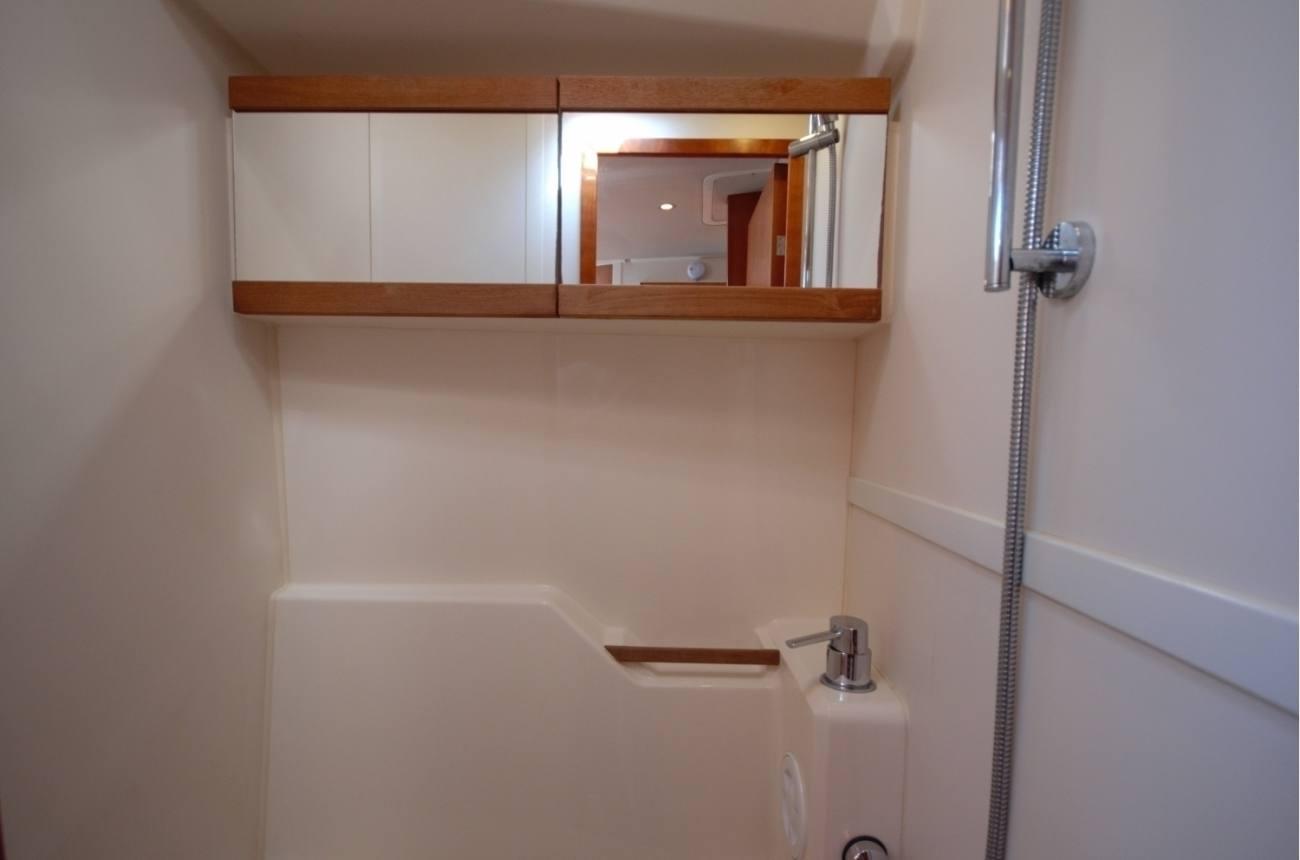

Heads
- Large heads to port with separate shower stall divided by plexi glass.
- New Dometic 12v master flush fresh water WC in fwd cabin en-suite.

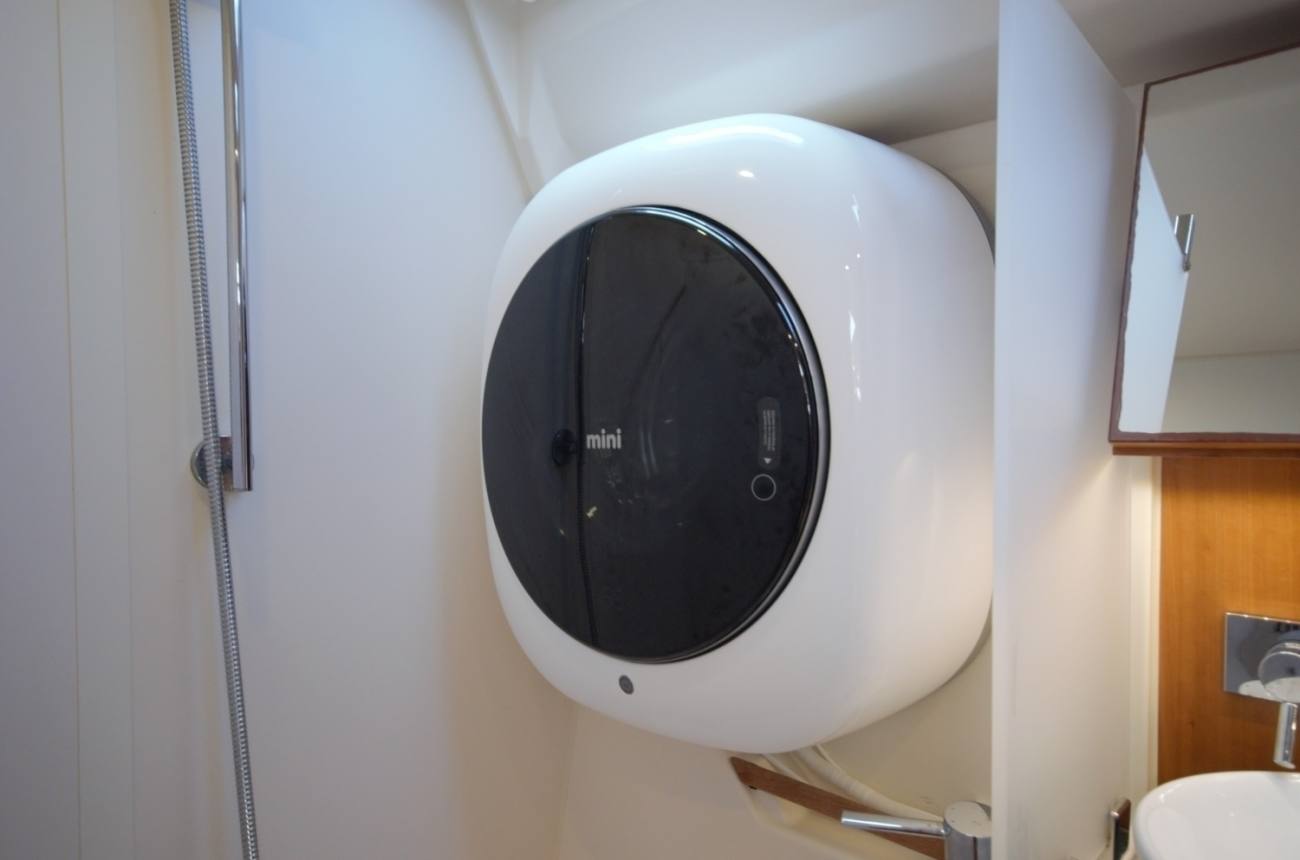

- Daewoo mini Washer / Dryer in port heads
- 3nd Day heads to starboard.
Navigation Equipment

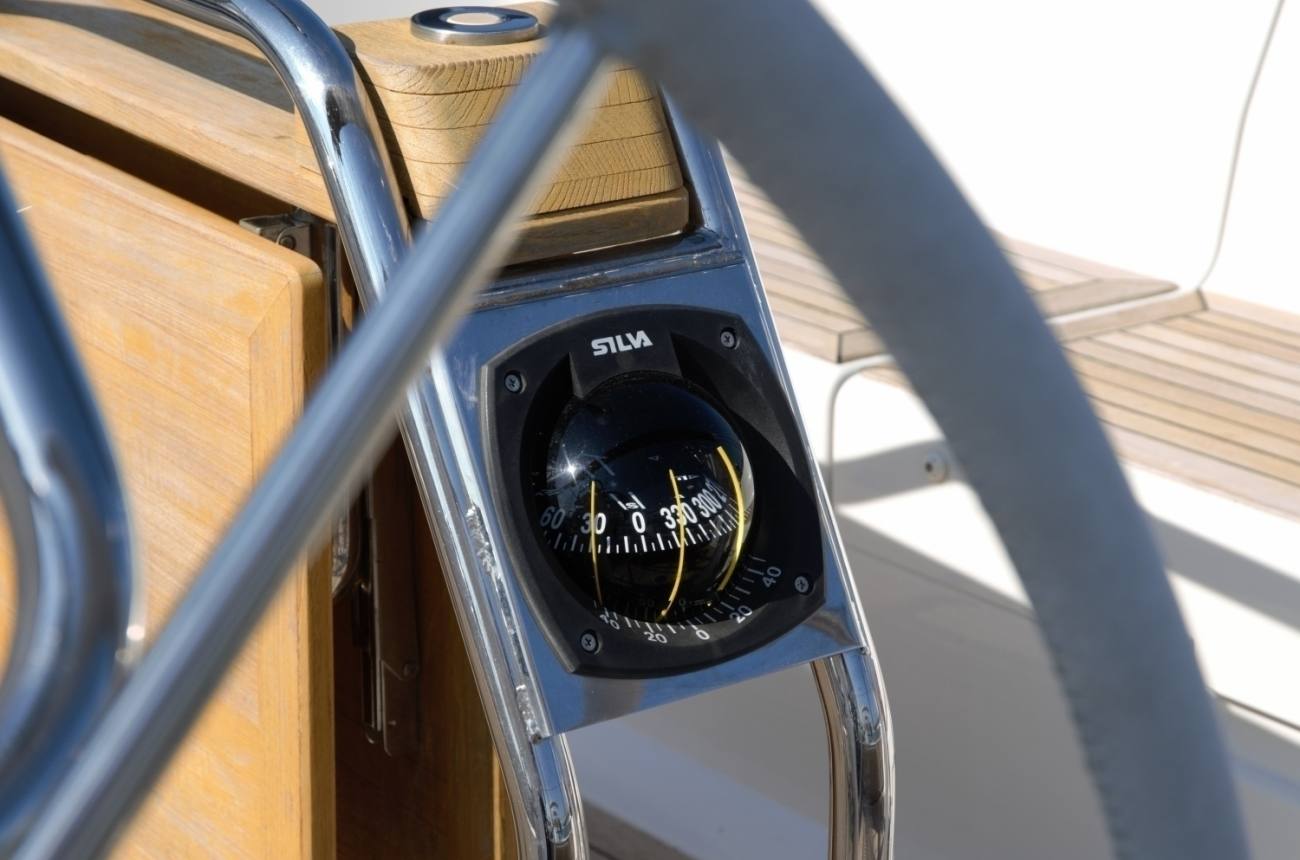

- Steering compasses
- 2 x B and G Triton 2 multifunction displays new Sept 2023.
- B and G Wind
- Masthead wind indicator

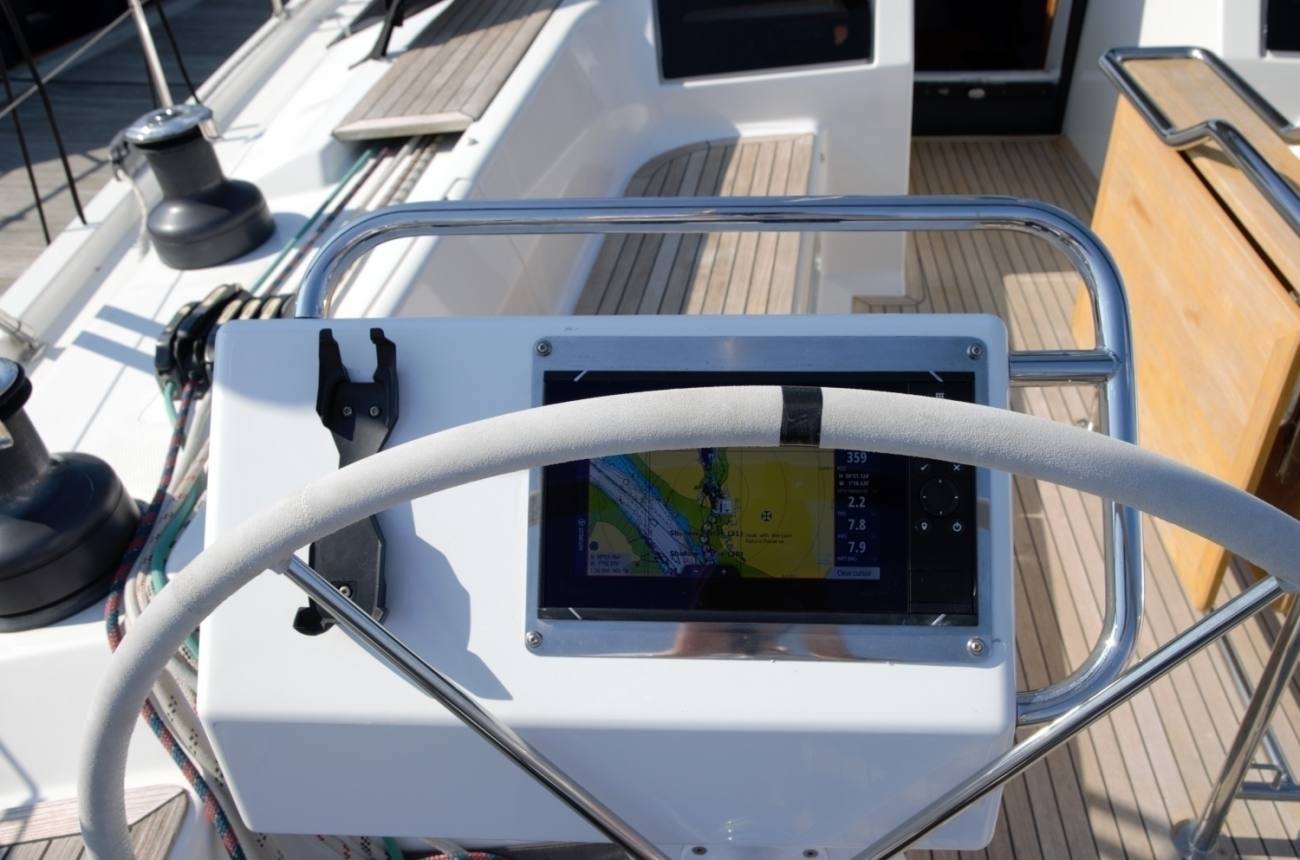

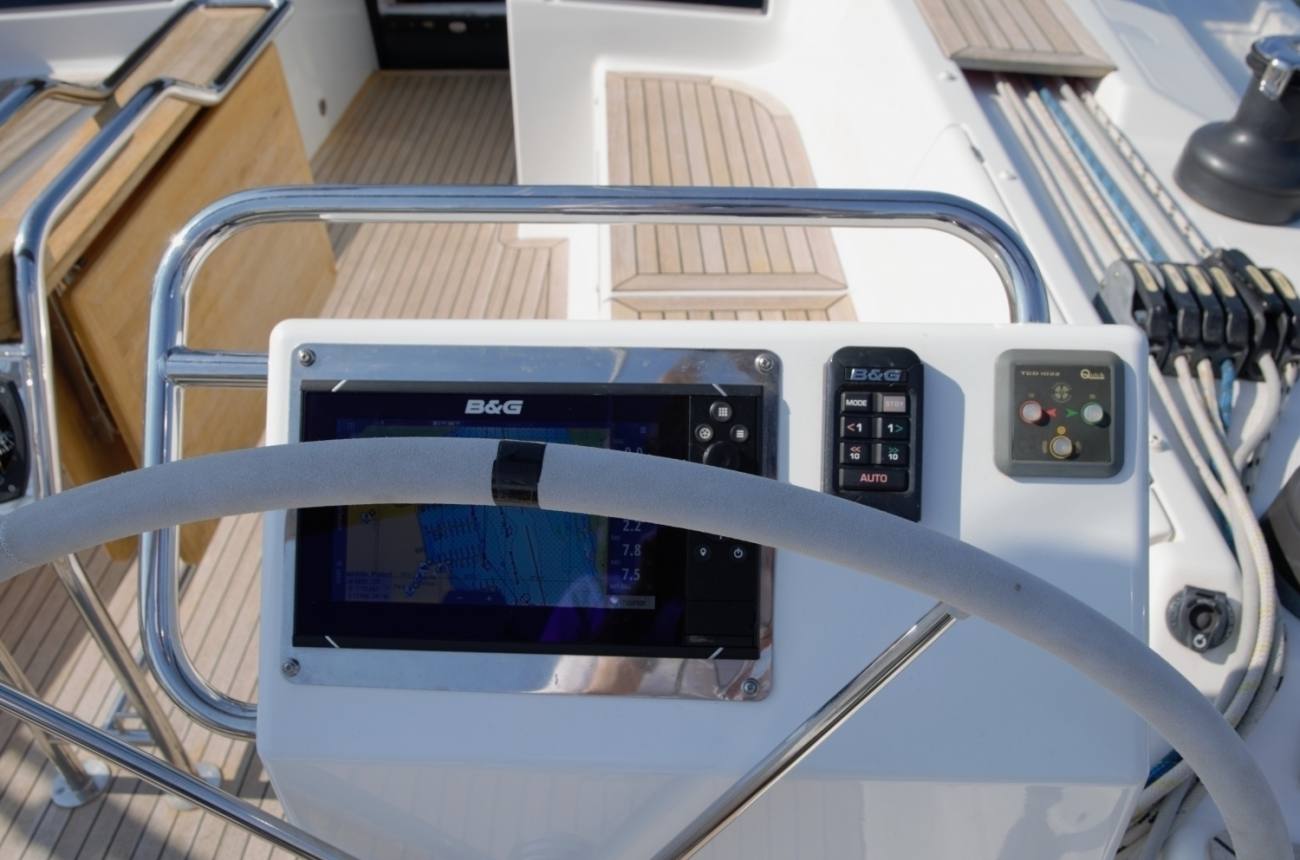

- 2 x B and G Zeus 3 (2021) touch screen plotters with Nav Pods at helms.
- B&G Navionics + Large charts UK, Ireland + Holland, Europe Central & West, Africa Northwest, Central America and Caribbean.
- AIS with class B transponder
- B and G Broad band radar
- B and G Autopilot with RC42 Compass
- B and G VHF with paired H50 hand held remote unit
- EPIRB
- Navtex
- SSB radio
- Iridium Certus 100 Sat Phone
- Antenna for VHF, AIS and FM
- iPad mount at chart table.
- Redbox WiFi & Router, WiFi BAT and 4G router

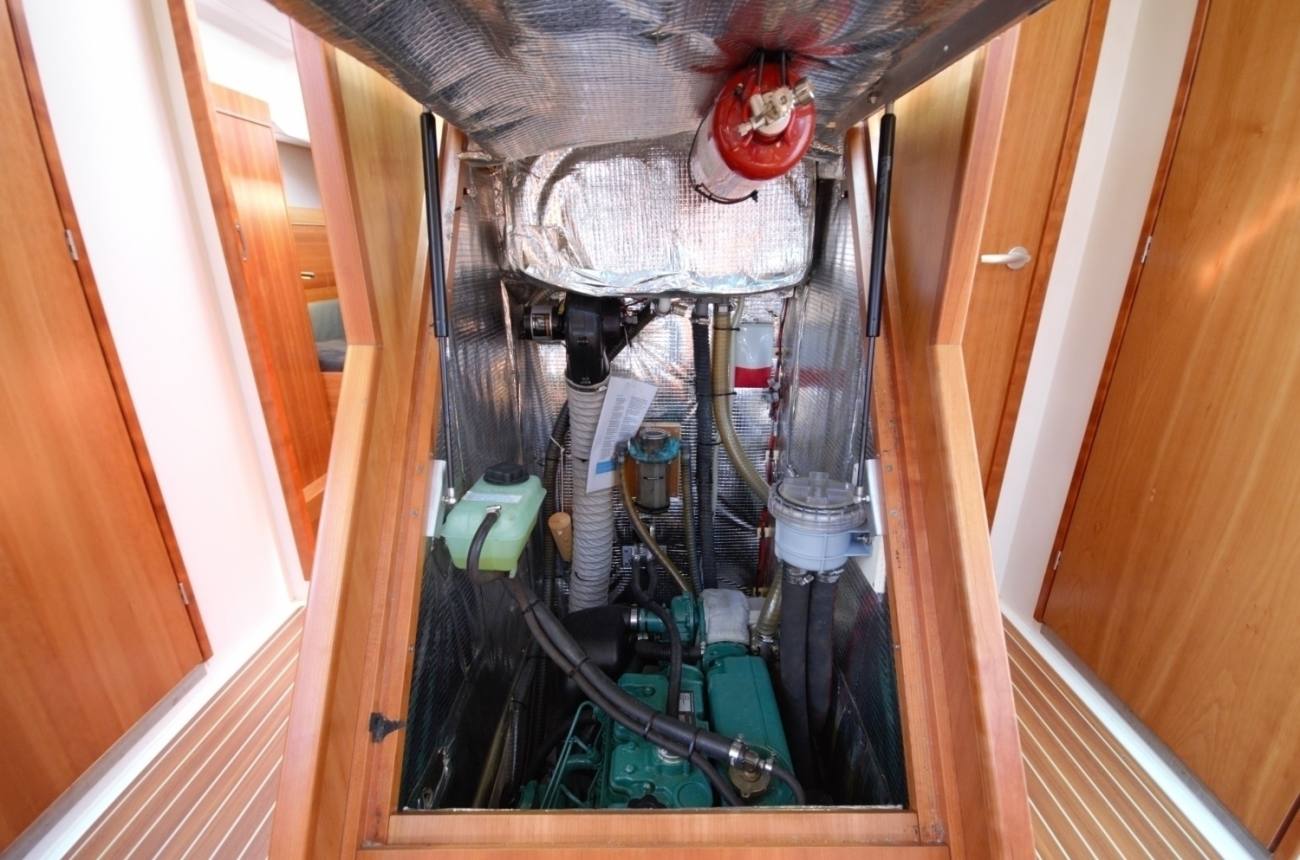

Machinery & Propulsion
- Volvo D2-75 (53kW/72 hp) Inboard diesel engine
- Engine Hours 1260
- Sterling digital alternator booster
- Sail drive engine leg renewed 2018.
- 3 Blade bronze flexi-fold propeller
- Fuel filler on deck
- Fuel filters / water separator. Racor filter replaced 2023
- Engine room sound insulated and illuminated
- Engine spares kit.
- Retractable bow thruster.
- Panda 8000i 6 KVA generator fully installed - New Inverter Oct 2023
- Watt and Sea hydro generator - Cruising 600, log leg waterproof connector and spare blade.
- Victron 3000va 120 amp multi-plus charger/inverter.
- Victron Cerbo GX
- Hot & Cold Air conditioning to all cabins - 40,000 BTU

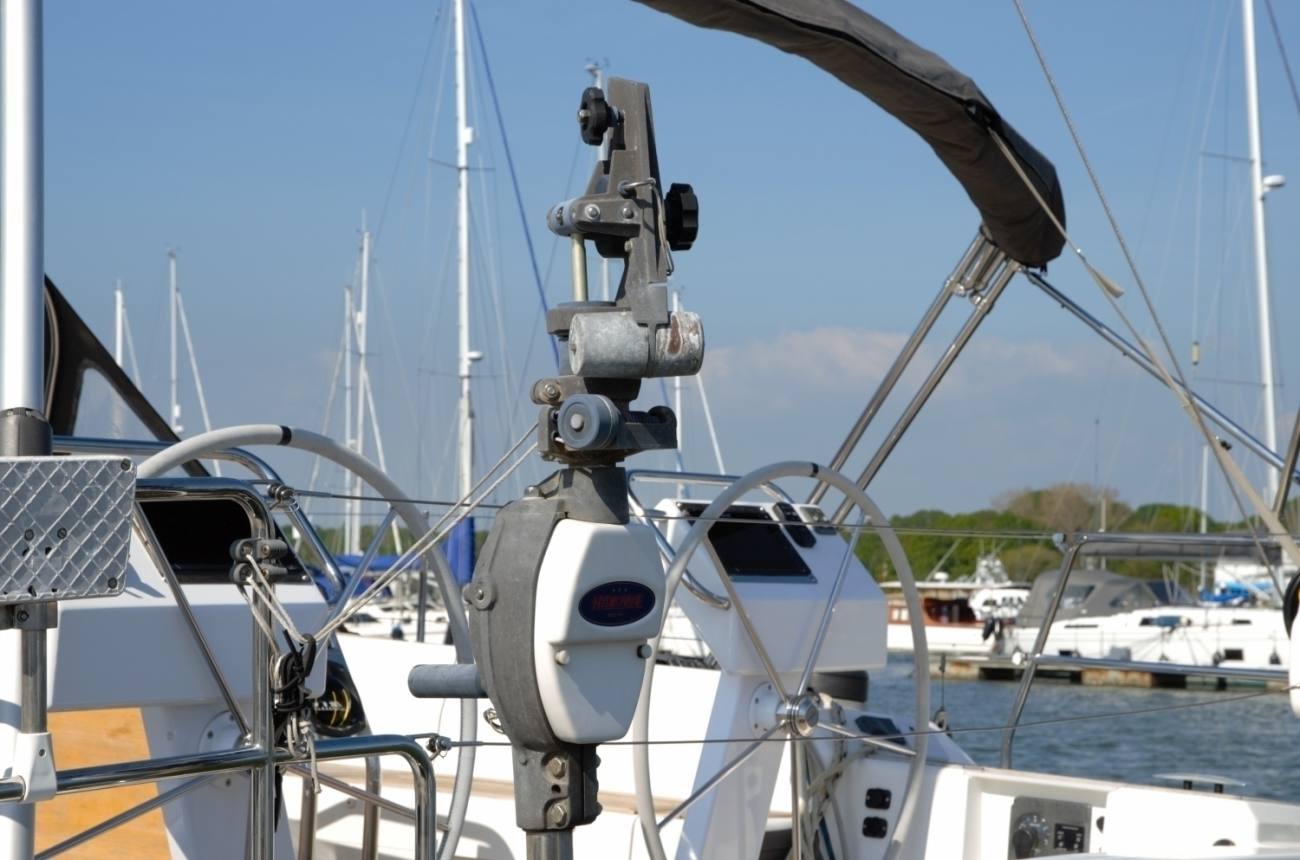

- Hydrovane self steering system with Handle & Raymarine Tiller pilot as back up.

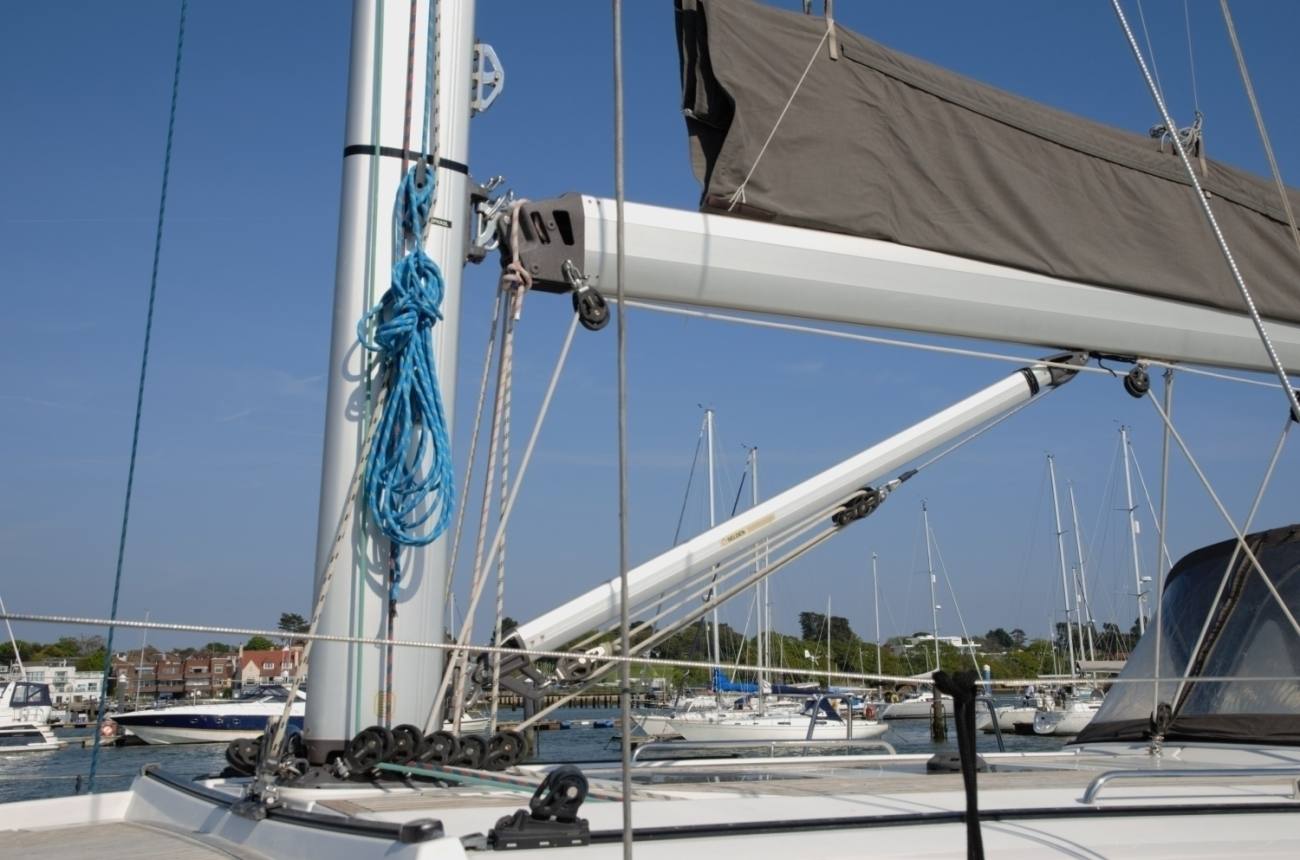

Rig & Sails
Rig

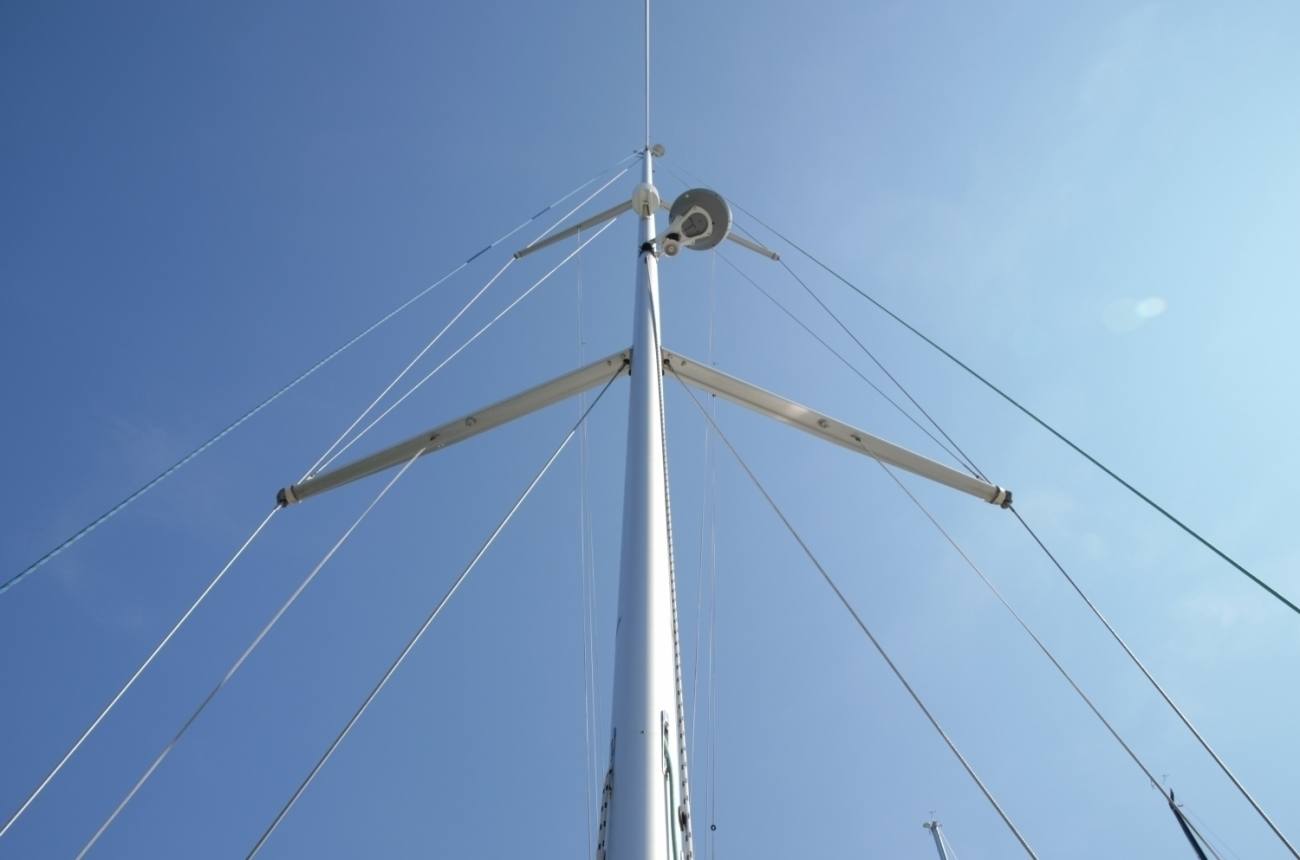

- Selden silver anodised aluminium 2 spreader deck stepped tapered mast.
- Silver aluminium Boom with 3 reefing lines
- Mid boom German main sail sheeting system.
- Selden gas assisted rod kicker
- Hydraulic back stay adjuster
- Roller Furler system with under deck drum
- Secondary genoa tracks with pin stop cars.
- Dyneema Main, Jib and Masthead gennaker halyards.
- Fractional spinnaker halyard
- Gennaker and parasailor sheets and blocks
- Bobstay for gennaker
Sails
- Mainsail - Fully battened Elvstrom FCL tri-radial cut, performance membrane with tafeta scrim both sides. Batten cars and 3 reefing points. Serviced Jan 2024.
- Self tacking headsail - Elvstrom FCL tri-radial cut, performance membrane with tafeta scrim both sides. Serviced Jan 2024.
- Elvstrom Furlstrom gennaker on single line furler
- Parasailor - serviced January 2024
- Storm sail
- Sail repair kit
Electrical Systems
- 12v ships system.
- Main battery switches
- Engine battery (12v / 90 ah ) - 2021
- Service battery bank ( 4 x 165 ah AGM ) - 2023
- 80 ah Battery charger
- Isolator switch
- Switches for all onboard electrics (up graded instrument panel)
- Voltmeter and battery control (Digital)
- Water / Fuel gauges. (upgraded in 2023)
- Touch screen controller with dimmer function.
- LED lighting comprising - overhead lighting in cabins, saloon, galley and heads. plus recessed mood lighting.
- Lighting in engine compartment
- Reading lights in saloon and cabins
- Night light on companionway.
- 12 v sockets at chart table and helm station.
- NAV LIGHTS - LED Pulpit & Pushpit
- Steaming light
- Anchor light
- 230v shore supply protected with differential breaker and distribution system.
- 230 v outlets at/in Chart table, fwd cabin/ aft cabin/ 2 x galley/2 x saloon/heads.
- Differential breakers
- Control gauges
- Voltmeter
- Charger/Inverter
- Solar Panels with Victron Smart solar controller
Audio Visual
- 2023 Fusion AV755 stereo system with 6 speakers and cockpit remote
- 55 inch LED TV mounted on bulkhead in saloon
- Apple TV
Plumbing & Tankage
- 2 x Water tanks of 450 litre and 200 litre (650 L total)
- 2 x 140 litre Fuel tanks (280 Litre total).
- Hot & Cold water
- Washing machine
- Cockpit shower
- Deck wash pump
- 60 l/hr water maker with dedicated tap at the galley - New Membrane January 2024.
- Spares for water maker
Canvas work

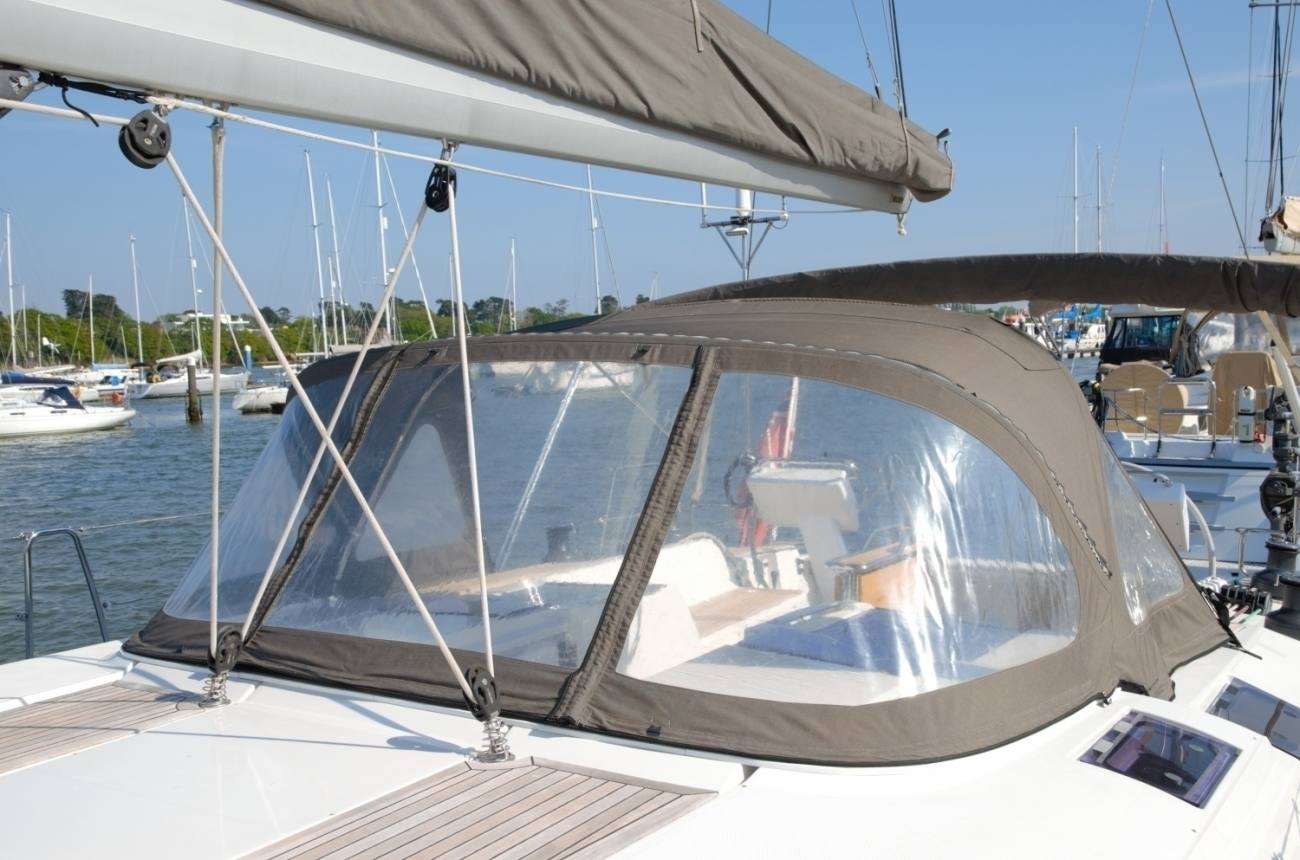

- Sprayhood with stainless steel frame and leather covered grab rail

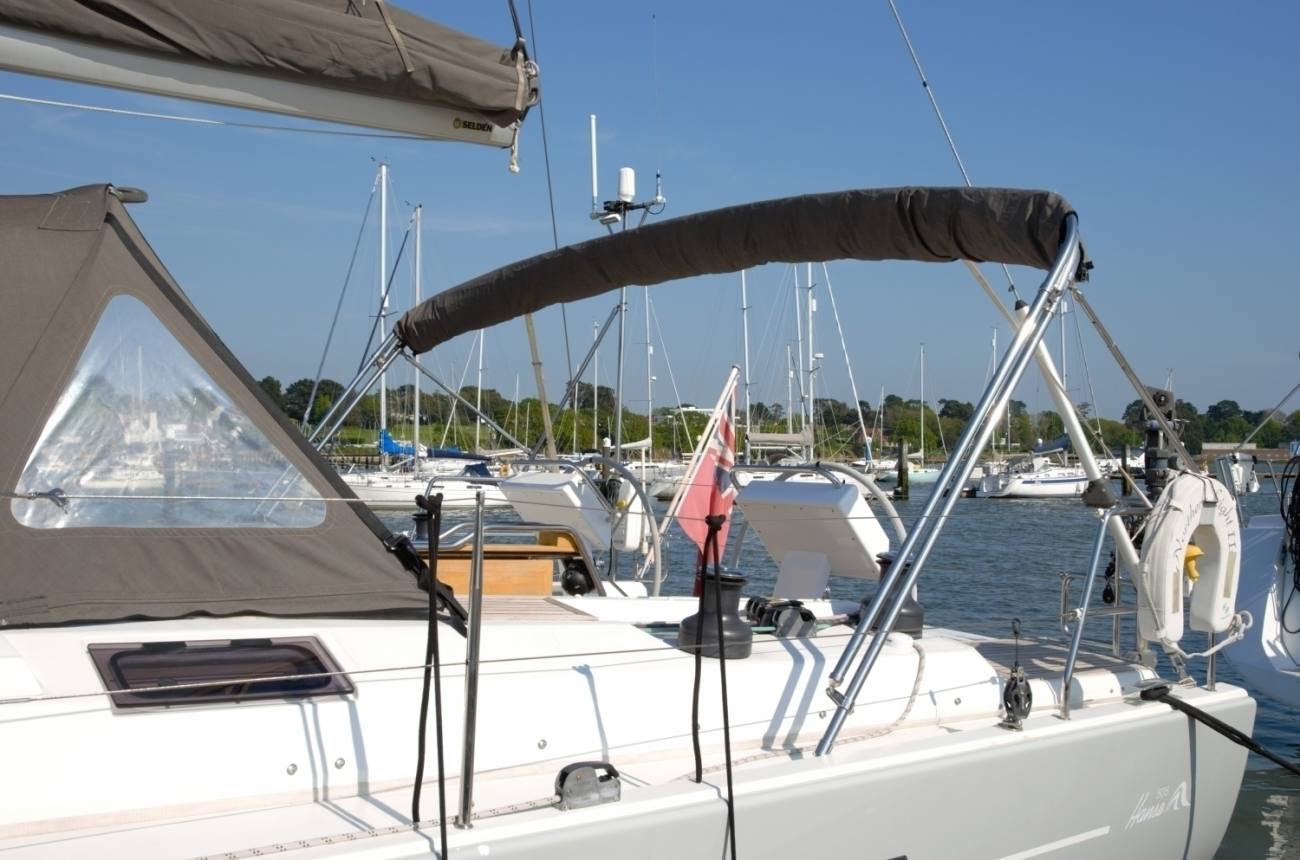

- Bimini with sides to create a fully enclosed cockpit Tent
- Cockpit table cover
- Wheel & Binnacle covers
- Cockpit cushions
- Sunbed cushions for cabin top (On deck storage bag)
- Rope bags
- Mainsail stack pack system with lazy jacks.
- Sun Tent for Coachroof - attached to Stack pack
- Full set of waterproof covers for saloon upholstery.
- Coachroof hatch covers
Safety Equipment
- AIS Class B transponder
- Jackstays
- Ocean standard flare kit
- Echomax radar reflector on mast
- Gas alarm, smoke alarm and CO2 alarm
- Fire Extinguishers
- Backstay isolation
- ARC spec bilge pump
- Spare bilge pump
- Seabrake and bridle in carry bag
- Staylock emergency rigging repair kit for all rigging sizes on boat.
- 8 man life raft with grab bag
- MOB lifting triangle
- Throw line
- Cable cutters
- Search light
- Jonbouy (inflatable)
- Horse shoe life bouy plus LED light and drogue and inflateable life buoy
- EPIRB
Additional Equipment
- Winch handles
- Fenders
- Warps
- Flag staff
- Gas bottles
- Spare fuel cans
- Spare halyards
